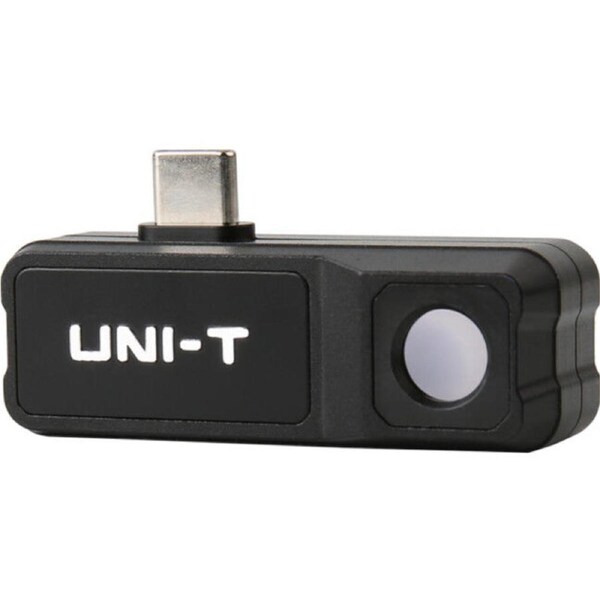

ANDROID SMARTPHONE THERMAL IMAGER
UTi120Mobile Thermal Camera Module for Andriod
UTi120Mobile is a professional smartphone thermal camera module for Andriod devices, which is compact, portable, and easy to operate by connecting with mobile phones. UTi120Mobile provides a clear image with a fast response, and can also detect temperatures up to 400°C. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors builders, etc.
- Designed for Andriod smartphone
- Plug and play with "Thermal Mobile" APP
- IR Resolution: 120×90
- Temperature measurement range: -20°C to 400°C / -4°F to 752°F
- Compact size and easy to carry
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer: 6 Points / 6 Lines / 6 Rectangles / 6 Circles
- Image capture
- Video recording
- Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: Android USB Type-C interface
- 2m drop-proof
- Create report with on screen analyzer in the APP
- Manufacturing Machine Inspection
- PCBA Inspection
- Freezer Inspection
- Electricity Inspection
- Pipeline Inspection
- Motor Inspection
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Field of view(FOV) | 50° H×38° V |
| Thermal sensitivity(NETD) | ≤60mK @25°C |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range | -20°C ~ 400°C |
| Temperature display | Center Spot, High Spot, Low Spot |
| Accuracy | For temperature > -10'C, ±2% or±2'C(whichever is greater, ambient temperature 25'C) |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Temperature units | °C, °F |
| Temperature resolution | 0.1° |
| Image modes | Thermal,Fusion,PIP |
| PIP | Display visual image (on phone) and infrared image simultaneously |
| On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | Yes |
| Hi/Lo tracking | Real-time tracking of Hi/Lo spot in the thermal images |
| Image editing | Saved images can be edited, but videos cannot |
| Video recording | Yes (via the phone) |
| General Characteristics | |
| USB | Type C |
| Operating temperature | 0-+45°C |
| Storage temperature | -20-+60°C |
| Relative humidity | 10%-85%RH, non-condensing |
| Altitude | 2000m |
| Drop-proof | 2m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE,UKCA,FCC,RoHS,MFi |
| Product net weight | 25g |
| Product size | 53mm×18.2mm×18.5mm |
- UTi120MS x 1
- UTi120MS case x 1
- 1M USB Type C plug to socket extension cable x 1
- Micro USB to Type C adapter x 1
- English manual x 1
- Documents download operation guide card x 1
- Cleaning cloth x 1
