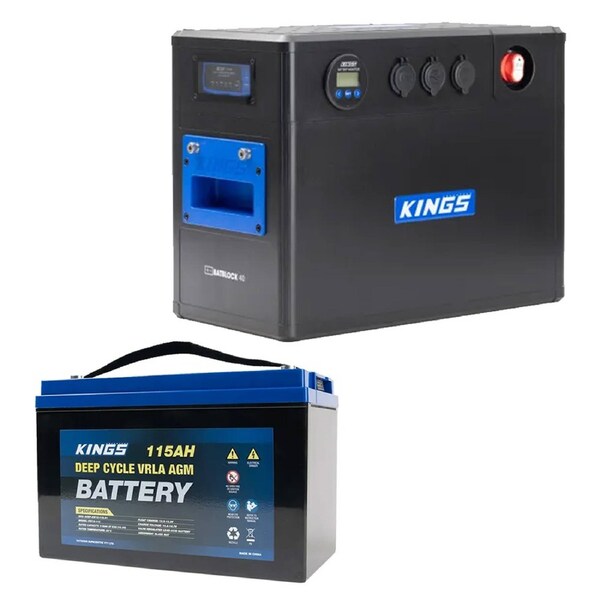

Kings BatBlock40 - 12V Plug and Play Battery Box with DCDC Charger+ 12V 115Ah Deep Cycle Battery
• The built-in digital battery monitor allows you to see the power going into or coming out of your battery through any of the inputs or outputs. Featuring two 50A quick-connect plugs, a 12V Cig Socket, two standard USB A sockets and a USB QC3.0 and USB C outlet, you can run your portable fridge, camp lighting and 12V oven or charge your USB devices wherever you are!
KINGS BATBLOCK40
BatBlock is a plug-and-play, pre-wired power solution, add a 12V battery and you have a ready-to-use solution to power your gear. It comes with a pre-wired 40A DCDC charger to enable charging from solar or your vehicle.
Max. Supported Battery Size 330 x 173 x 220 mm
Max. Continuous DCDC Charging Current 40A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium with push button selection
Battery Monitor Display YES - Backlit LCD (V, A, W, Ah, H, °C, %)
Shunt YES - 500A rated
Inputs 1x Quick connect solar input 1x triple quick connect alternator input
Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch YES - with 200A fuse
Tie Down Points YES - 4x M8 removable shoulder bolts
Case Material Reinforced ABS
Weight 6.4kg
Dimensions 441 x 236 x 340 mm
KINGS 115AH 12V AGM DEEP CYCLE BATTERY AGM TECHNOLOGY LEAK PROOF
Battery Type Deep-Cycle Maintenance Free, AGM Valve Regulated Lead Acid (VRLA)
Lead Calcium Grid Purity 99.994%
Nominal Voltage 12V
Nominal Capacity (C20 to 1.75V/cell) 115Ah
Cycles at 30% Depth of Discharge ~1800
Charge Voltage at 25°C 14.5~14.9V (-4mV / °C / cell)
Float Charge Voltage at 25°C 13.5~13.8V (-3mV / °C / cell)
Recommended max Charge Current 34.5A
Internal Resistance ≤7 mΩ (Fully charged)
Maximum Discharge Current (5 seconds) 920A
Self-Discharge Rate ≤3% per month
Operating Temperature - Discharging -20°C to +50°C
Operating Temperature - Charging -10°C to +40°C
Operating Temperature - Storage -20°C to +40°C
Terminals M8 Threaded
Case Material ABS
Dimensions 330mm x 172mm x 215mm
Weight (kg) 29kg
