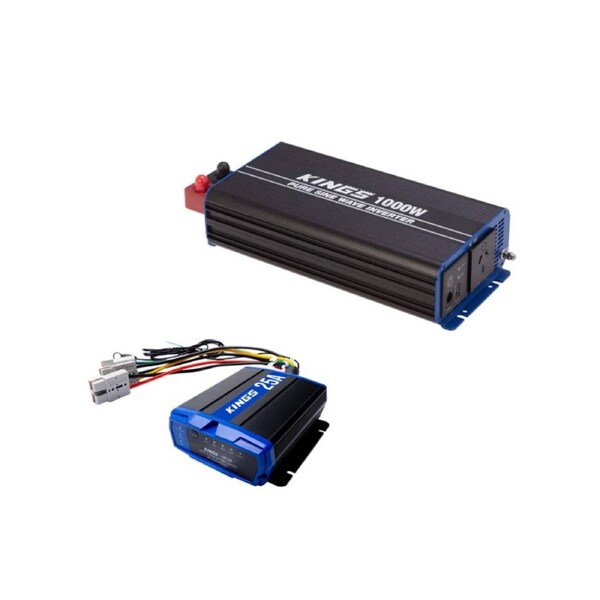

Kings 1000W Pure SineWave Inverter +25A DCDC Charger MPPT SolarRegulator 12/24V
• The Adventure Kings Inverter range all have pure sine wave output, which is critical for safety and efficiently powering AC devices. Running other types of inverters including a modified sine wave or a square wave can damage sensitive electrical devices, decreasing lifespan, and generating unnecessary heat and energy loss.
KINGS 1000W PURE SINE WAVE INVERTER
1,000 Watts | AGM and Lithium Compatible
Turn 12V battery power into 1000W of Pure Sine Wave 240 Volt AC - Runs all your home comforts off the grid
it will have no trouble powering a laptop, charging a camera or drone and keeping your phone or tablet charged too.
Wattage (Rated) 1,000W
Wattage (Surge) 2,000W
Output Waveform Pure Sine Wave
Input Voltage 10.5 - 15.5 Volts (DC)
Output Voltage 240 Volt (AC)
AC Frequency 50Hz
Efficiency 89% (Typical)
Stand-By Power Usage 0.9A
Mounting Points 8 total (4 each short side)
Fan Temperature Controlled
12 Volt Terminal Size M10
Dimensions (LxWxH) 33 x 15 x 7.5 cm
Weight 2.5 kg
Kings 25A DCDC Charger
MPPT Solar Regulator| Lithium Compatible | 12/24V Input
The DCDC Charger has built in MPPT Solar Regulator at a minimum of 15W input.
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Housing Powder coated aluminium
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required (50A Suggested)
IP Rating IP66
