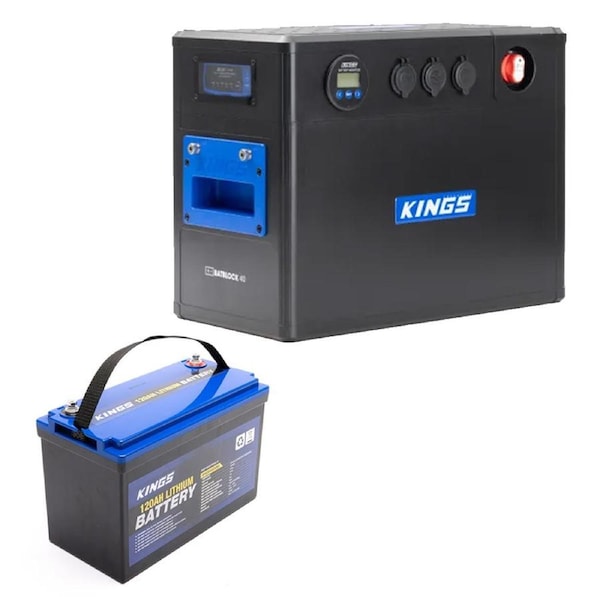

Kings BatBlock40 - 12V Plug and Play Battery Box with DCDC Charger + 12V 120Ah Deep Cycle Lithium LiFePO4 Battery
• The built-in digital battery monitor allows you to see the power going into or coming out of your battery through any of the inputs or outputs. Featuring two 50A quick-connect plugs, a 12V Cig Socket, two standard USB A sockets and a USB QC3.0 and USB C outlet, you can run your portable fridge, camp lighting and 12V oven or charge your USB devices wherever you are!
KINGS BATBLOCK40
BatBlock is a plug-and-play, pre-wired power solution, add a 12V battery and you have a ready-to-use solution to power your gear.
Max. Supported Battery Size (LxWxH) 330 x 173 x 220 mm
Max. Continuous DCDC Charging Current 40A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium with push button selection
Battery Monitor Display YES - Backlit LCD (V, A, W, Ah, H, °C, %)
Shunt YES - 500A rated
Input / Output 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs 1x Quick connect solar input 1x triple quick connect alternator input
Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch YES - with 200A fuse
Temperature Sensors YES - DCDC charger + battery monitor
Tie Down Points YES - 4x M8 removable shoulder bolts
Case Material Reinforced ABS
Weight 6.4kg
Dimensions (LxWxH) 441 x 236 x 340 mm
KINGS 12V 120AHDEEP CYCLE LITHIUM LIFEPO4 BATTERY
Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 120Ah
Rated Energy 1536Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Rated Float Charge Voltage 13.6V
Discharge Cut off Voltage 10V
Max Continuous Discharge Current 120A
Max Pulse Discharge (5 Seconds) 160A
Operating Temperature - Charging 0 - +50°C
Operating Temperature - Discharging -20 - +60°C
Life Cycles >2000
Cell Construction Prismatic
Case Material ABS
Terminals M8 Threaded
Allowed Batteries Connected in Series Bank (Same Batch) 4
Allowed Batteries Connected in Parallel Bank (Same Batch) 2
Dimension (LxWxH) +-1cm ~330 x 172 x 215 mm
Weight +-3kg ~15.9Kg
