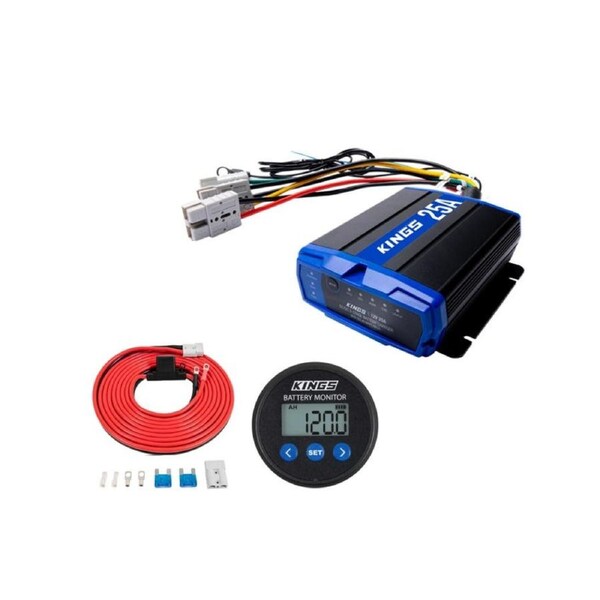

25A DCDC Charger + 50A Wiring Kit + 500A Battery Monitor With Shunt
• The Kings Battery Monitor uses battery voltage readings, and a high precision 500A shunt to measure current and calculate Amp hours in and out so you can check battery voltage, charging/discharging current, power, temperature or battery capacity percentage. With the 500 Amp shunt, it measures the power draw of 12V accessories up to ~6000W - so it's ideal for inverters. Compatible with Lithium or AGM, 12V or 24V. Alarms for over/under-voltage, over-current and over-temperature
• 50A Wiring Kit - a cost-effective way to wire up a DCDC Charger, a dual battery OR get power down to your towbar for your caravan or camper trailer. The Kings 50A Wiring Kit perfectly suits the Kings 40A DC-DC Charger and measures in at a thumping six metres long. Built with 16mm2, 6AWG twin-core wiring, to minimise voltage drop. pre-terminated with 8mm ring terminals on one end to suit all sizes of Kings lithium and AGM batteries, and an in-line maxi blade fuse holder with two 60A fuses.
Kings 25A DCDC Charger
MPPT Solar Regulator| Lithium Compatible | 12/24V Input | IP66 Rating
The best way to have a dual battery system in your vehicle.
Continuous Charging Current 25A
Output Power 300W
Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Housing Powder coated aluminium
LED Indicator lights Yes - for connection, charging status and errors
Battery Selection - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
IP Rating IP66
Kings 500A Battery Monitor With Shunt
Lithium or AGM, 12V or 24V Compatible
Measure Voltage, Amps, Power, Amp Hours, Temperature and Battery %
Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
KINGS 50A WIRING KIT
Wire up a DC Charger, a dual battery or, get power to your 12v control box or from your solar panel - the Adventure Kings 50A Wiring Kit! Six metres long it's built with 16mm2, 6AWG twin-core wiring.
Kings 50A Wiring Kit
Wire Length 6 Metres
Wire Gauge Twin Core 6AWG / 16mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
