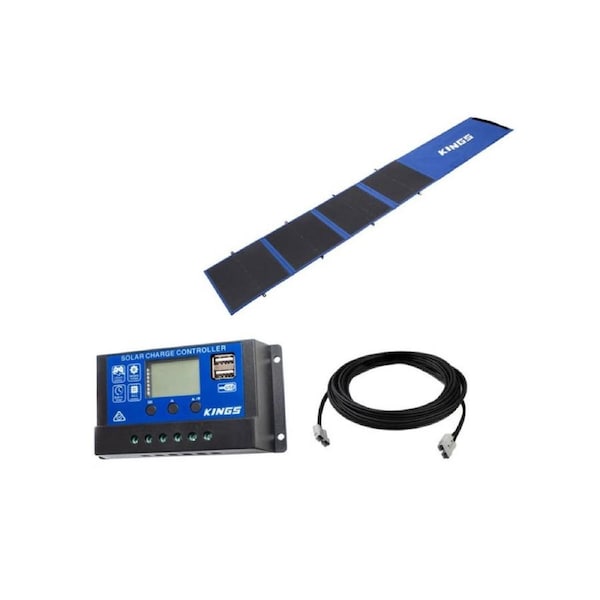

Kings 120W Folding Solar Blanket Grade A PET coated cells+ 12m Extension Lead + 15A PWM Solar Controller
• ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Its compatible with Adventure Kings PWM or MPPT regulators, DCDC chargers, or BatBlocks
KINGS 120W FOLDING SOLAR BLANKET
Up to 10A of charge at 12V | Grade A PET coated solar cells
Output 120W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.04V
ISC (Short Circuit Current) 6.18 A
Note VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 21.99V
VMP (Voltage at Maximum Power) 5.69A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions (LxWXH) 165 x 46 x 0.75cm
Folded Dimensions (LxWXH) 44 x 46 x 3.5cm
Weight 3.6kg
12m Solar Extension Lead
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V
15A PWM SOLAR CONTROLLER 3 STAGE CHARGING LCD DISPLAY BUILT IN PROTECTIONS PWM TECHNOLOGY
• Dimensions : 133 x 70 x 34mm
• Mounting Holes: 126 x 49mm
• Max Solar Input: <50V
• Float Charge: 7 - Default, Adjustable
• Discharge Stop: 7 - Default, Adjustable
• Discharge Reconnect: 6V - Default, Adjustable
• USB Output: 5V / 2A
• Weight: 154g
