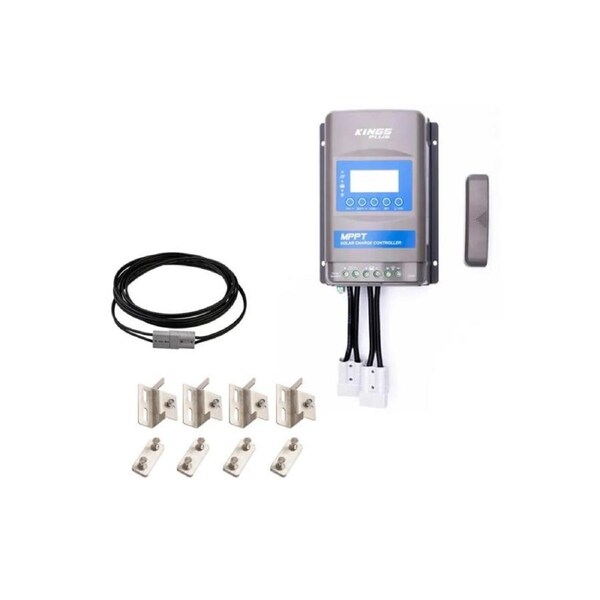

Plus 20A MPPT Solar Regulator + 6m Extension Lead + Mounting Brackets
• For the solar input side, it will accept up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it's able to efficiently and effectively charge your batteries! In the box you get the MPPT Charge Controller, a pair of Kings Quick Connect Plugs with double insulated 6mm2 wire that are compatible with all Adventure Kings solar panels with the same quick connect plugs,
• PLUS a temperature sensor that plugs into the unit. Without the temperature sensor plugged in, the unit will continue to function and will default all settings to 25°C. Below the terminal cover there are screw terminals that accept up to 16mm2 or 6AWG wiring - as well as an RS485 communications port that allows for data logging or connection to a computer by attaching optional RS485 compatible components.
• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there's an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too - perfect for your next trip away or your next DIY project!
• STAINLESS STEEL BRACKETS Easily and securely mount your Adventure Kings Fixed Solar Panel to your roof rack or other flat surface with the Adventure Kings Solar Panel Mounting Brackets Kit! Made with tough stainless steel and using threaded alloy blocks they're strong and neat.
This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, has an advanced display that shows real time power
AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
IP Rating IP33 Dust And Water Resistant
Dimensions 217 X 158 X 57 mm
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
6M SOLAR EXTENSION LEAD
2.5MM2 HIGH QUALITY COPPER | HEAVY DUTY
Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop.
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
SOLAR PANEL MOUNTING BRACKETS MOUNTING HARDWARE INCL. STAINLESS STEEL
Easily and securely mount your Adventure Kings Fixed Solar Panel to your roof rack.
• Four heavy-duty brackets to mount a Kings 110W Solar Panel to your roofrack or other hard surface
• Bracket Material: Folded Stainless Steel
• Mounting Hardware: Stainless Steel
• Weight (four brackets combined): 800gm
