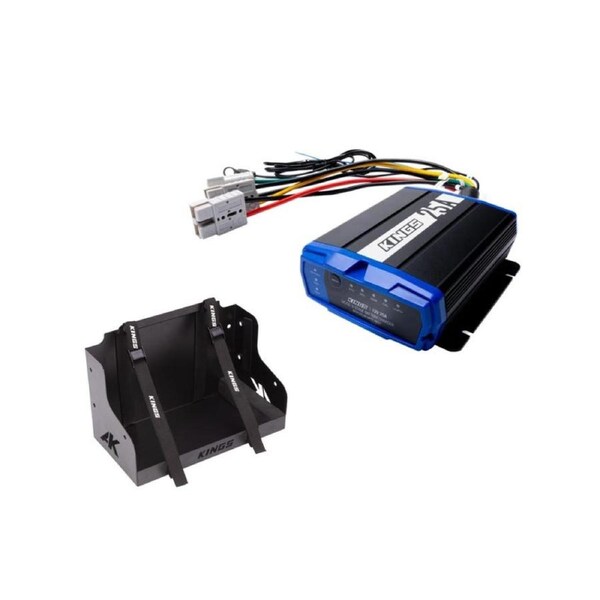

Kings 25A DCDC Charger MPPT Solar Regulator Lithium AGM+ Battery Tray Standard
• CHARGER, ISOLATOR + SOLAR REGULATOR - ALL IN ONE CHARGING SOLUTION The Kings 25A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you're getting the most charge out of your panel no matter the conditions.
• charge pattern specific to 12V Lithium (LiFePO4) batteries, plus the ability to easily switch to standard 12V lead acid, AGM, Gel or Calcium batteries with the press of a button, the Adventure Kings DCDC will work with just about any setup - and is easy to adapt to your future setups too! The Kings DC Charger also has an automatic lithium 'wake' feature where it will attempt to wake up or 'jump start' a lithium battery where the BMS has disconnected due to low voltage.
• QUICK CONNECT PLUGS ON INPUTS AND OUTPUT Connecting your DCDC charger has never been easier - simply connect up the input from your starter battery, the output to your auxiliary battery and then connect solar panel in seconds all thanks to the quick connect plugs. The 25A Charger along with a Kings 50A Wiring Kit is the perfect combo for an easy plug and play install!
• BUILT IN MPPT SOLAR CONTROLLER WITH SOLAR PRIORITY CHARGING The Kings DCDC Charger has built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you're getting the most charge out of your panel no matter the conditions.
BATTERY TRAY TO SUIT STANDARD BATTERY
Black Powder Coat | DCDC Charger Mount
SUITABLE FOR STANDARD BATTERY SIZES UP TO 120AH 34 x 18 x 22cm
designed to securely mount any standard sized Kings lithium or AGM battery up to 120Ah. Secure your battery to the wall or floor of your vehicle with ease using the Adventure Kings Battery Tray.
Maximum Battery Dimensions 34 x 18 x 22cm (LxWxH)
Tray Dimensions 34.5 x 18.5 x 24.3cm (LxWxH)
Material 1.2mm Powder Coated Steel
Accessories Foam Spacer Block for smaller batteries
DCDC Mounts Suits Adventure Kings 25A and 40A DCDC
Included Hardware X4 M8 mounting bolts and Nyloc nuts
X4 M4 DCDC Charger mounting bolts and nuts
Kings 25A DCDC Charger
Quick Connect Plugs | MPPT Solar Regulator| Lithium Compatible | 12/24V Input | IP66 Rating
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection
