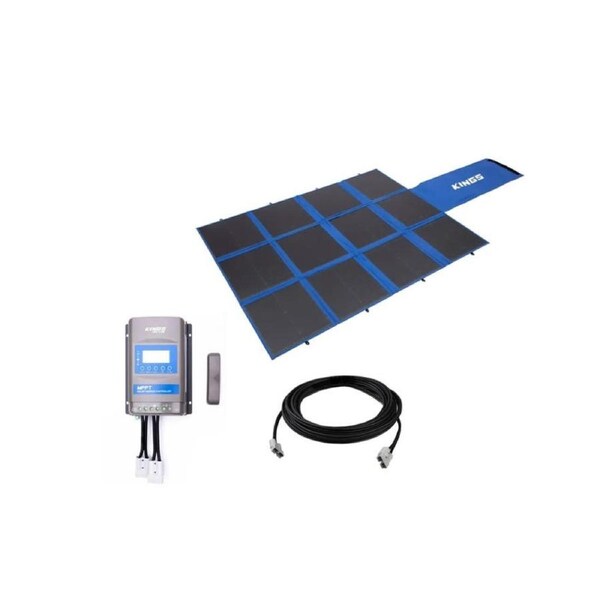

Kings 360W Folding Solar Blanket + 12m Extension Lead + 20A MPPT Solar Regulator
• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.
KINGS 360W FOLDING SOLAR BLANKET
Up to 30A of charge at 12V | Grade A PET coated solar cells | Quick Connect Plug
Output 360W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Open Dimensions (LxWxH) 165 x 142 x 0.75cm
Folded Dimensions (LxWxH) 44 x 46 x 9cm
Weight 9.6kg
12M SOLAR EXTENSION LEAD
Length 12m
Conductor Twin Core Multi-Strand Copper (84x0.3)
Conductor (each wire) 6mm2
Insulation 0.8mm Halogen-Free XLPO
Outer Sheath 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Maximum Rated Voltage DC 1500V
AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
