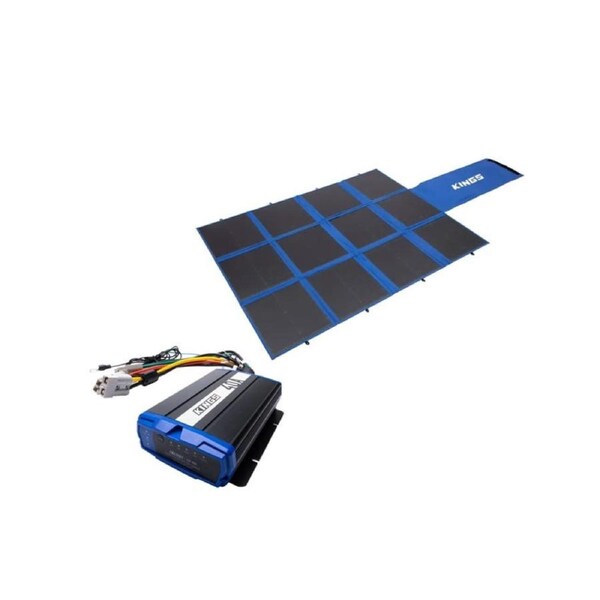

Kings 360W Folding Solar Blanket Grade A PET coated cells+ 40A DCDC Charger
• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.
KINGS 360W FOLDING SOLAR BLANKET
Grade A PET coated cells
360W to keep your devices charged wherever you go camping, traveling.
Output 360W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions (LxWxH) 165 x 142 x 0.75cm
Folded Dimensions (LxWxH) 44 x 46 x 9cm
Weight 9.6kg
KINGS 40A DCDC CHARGER
Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Housing Powder coated aluminium
Battery Selection - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
