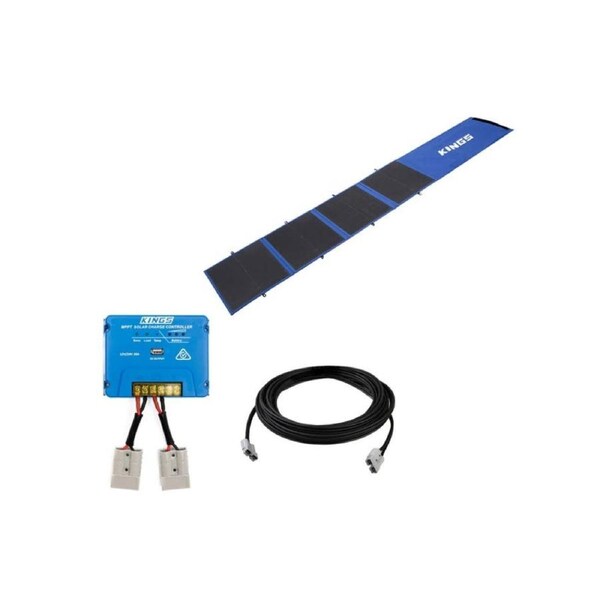

Kings 120W Folding Solar Blanket Grade A PET coated cells+ 12m Extension Lead + MPPT Solar Regulator
• ultra-black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film. Its compatible with Adventure Kings PWM or MPPT regulators, DCDC chargers, or BatBlocks
KINGS 120W FOLDING SOLAR BLANKET
Up to 10A of charge at 12V | Grade A PET coated solar cells
A lightweight, compact power solution to help keep your batteries charged when you're on the move.
Output 120W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.04V
ISC (Short Circuit Current) 6.18 A
Note VOC and ISC can vary by up to +/-1v and +/-1A
IMP (Maximum Power Current) 21.99V
VMP (Voltage at Maximum Power) 5.69A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions (LxWXH) 165 x 46 x 0.75cm
Folded Dimensions (LxWXH) 44 x 46 x 3.5cm
Weight 3.6kg
ADVENTURE KINGS 6M SOLAR LEAD
2.5MM2 COPPER
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
MPPT Regulator
• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar
• Dimensions: 131×99.5×29.5(mm)（L×W×H）
• current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems
• Max Regulator Voltage input: 50V
• No-load current : <10mA
• Safety: Overload & short circuit protection ≥1.5x rated current
• USB output: 5V 1A
