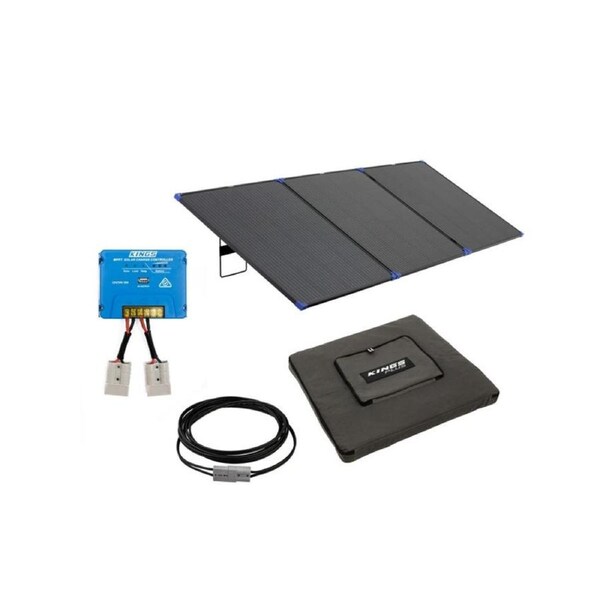

Kings 300W Folding Solar Panel + 6m Extension Lead + Folding Solar Panel Bag + MPPT Solar Regulator
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• Protect your Adventure Kings folding solar panel from the harshest conditions with our dedicated protective cover. With full length dual zippers, storing your panel is effortless. No more struggling to squeeze your panel into a small bag, simply lay the bag flat and slide your panel straight in. Plus, the rubberised handle makes it easy to carry around camp. Inside, open-cell foam padding provides superior protection for your gear, ensuring it stays safe and secure
• The perfect partner for your portable solar blankets or panels, the 6 metre length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.
• Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it's suitable for both 12 and 24V systems. Connecting and using the Adventure Kings 20A MPPT is easy thanks to the two included Quick Connect Plugs. LARGE ALLOY HEAT SINK to Keep the internal electronics and microcomputer cool even in tough conditions!
KINGS 300W FOLDING SOLAR PANEL
Output: 300W
Power Tolerance: +/- 5%
VOC (Open Circuit Voltage): 24.20V
ISC (Short Circuit Current): 16.52A
VMP (Max Power Volt): 20.40V
IMP (Max Power Current): 14.75A
Temp Coeff :
ISC: 0.05%/°C
VOC: -0.39%/°C
Pmax: -0.44%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection: Quick Connect (Anderson Style) Plug
Open: 211.5 x 80 x 1.8 cm
Folded: 70 x 80 x 6 cm
Weight: 13.3 kg
KINGS MPPT REGULATOR
• Regulator Type: Maximum Power Point Tracking
• Dimensions: 131×99.5×29.5(mm)（L×W×H）
• Regulator current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems (automatic)
• Maximum Regulator Voltage input: 50V
• No-load current (standby current): <10mA
• Safety: Overload & short circuit protection ≥1.5x rated current
• USB output: 5V 1A
KINGS FOLDING SOLAR PANEL BAG
Pockets 1 Main solar panel Pocket & 1 accessory pocket
Material 370GSM gray canvas
Dimensions Internal 70 x 80 x 6.5 cm
Weight 1.4 kg
ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 QUALITY COPPER
Length 6m
Conductor Material Copper 51x0.25
Conductor Area (each wire) 2.5mm2
Insulation 0.8mm PVC
Outer Sheath 1mm PVC
Outer Dia 9.3mm
Recommended Max Current 20A
Operating Temp Range -5°C~+70°
Plug Anderson-style Quick Connect , 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Maximum Rated Voltage 300V
