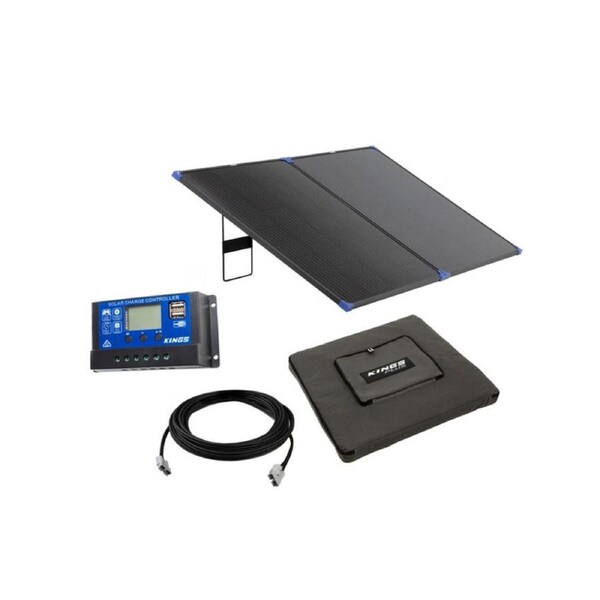

Kings 200W Folding Solar Panel + 12m Extension Lead + Folding Solar Panel Bag + 15A PWM Solar Controller
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• Protect your Adventure Kings folding solar panel from the harshest conditions with our dedicated protective cover. With full length dual zippers, storing your panel is effortless. No more struggling to squeeze your panel into a small bag, simply lay the bag flat and slide your panel straight in. Plus, the rubberised handle makes it easy to carry around camp. With a large additional storage pocket, you can keep all your solar accessories, like regulators and extension leads, close by for added convenience.
• Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they're up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there's an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance
• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, ideal for charging 12V batteries.
KINGS 200W FOLDING SOLAR PANEL
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 20.40V
IMP (Maximum Power Current) 9.90A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 141 x 80 x 1.8 cm
Folded Dimensions 70 x 80 x 4 cm
Weight 8.9 kg
15A PWM SOLAR CONTROLLER 3 STAGE CHARGING LCD DISPLAY BUILT IN PROTECTIONS PWM TECHNOLOGY
• Dimensions : 133 x 70 x 34mm
• Mounting Holes: 126 x 49mm
• Max Solar Input: <50V
• Float Charge: 7 - Default, Adjustable
• Discharge Stop: 7 - Default, Adjustable
• Discharge Reconnect: 6V - Default, Adjustable
• USB Output: 5V / 2A
• Weight: 154g
THE 12M SOLAR EXTENSION LEAD
Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V
KINGS FOLDING SOLAR PANEL BAG
Material 370GSM gray canvas
Dimensions Internal 70 x 80 x 6.5 cm
Weight 1.4 kg
