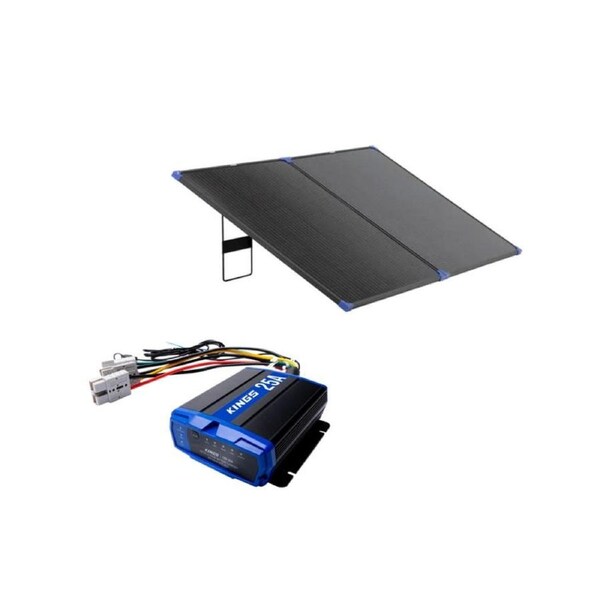

Kings 200W Folding Solar Panel Up to 16.67A at 12V + 25A DCDC Charger
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• The Kings 25A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you're getting the most charge out of your panel no matter the conditions.
• With a specially programmed charge pattern specific to 12V Lithium (LiFePO4) batteries, plus the ability to easily switch to standard 12V lead acid, AGM, Gel or Calcium batteries with the press of a button, the Adventure Kings DCDC will work with just about any setup - and is easy to adapt to your future setups too! The Kings DC Charger also has an automatic lithium 'wake' feature where it will attempt to wake up or 'jump start' a lithium battery where the BMS has disconnected due to low voltage.
• The Kings DCDC Charger has built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you're getting the most charge out of your panel no matter the conditions. If, for example, you're driving at night and there is no solar input, the charger will pull only from your alternator. When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging. If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 200W of solar power input.
KINGS 200W FOLDING SOLAR PANEL
200W Output | Bi-Fold Compact Design
This panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit) 24.20V
ISC (Short Circuit) 11.01A
Note VOC and ISC can vary +/-1v and +/-1A
VMP (Max Power ) 20.40V
IMP (Max Power ) 9.90A
ISC Temp Coefficient 0.05%/°C
VOC Temp Coefficient -0.39%/°C
Pmax Temp Coefficient -0.44%/°C
Standard Test 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open / Folded Dimensions 141 x 80 x 1.8 cm , 70 x 80 x 4 cm
Weight 8.9 kg
KINGS 25A DCDC CHARGER
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions 151mm x 121mm x 44mm
Weight ~1kg
Temp Compensation Yes ±18mV/°C
Temp Sensor(s) Yes
Housing Powder coated aluminium
LED Indicator lights Yes - for connection, charging status and errors
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A)
IP Rating IP66
