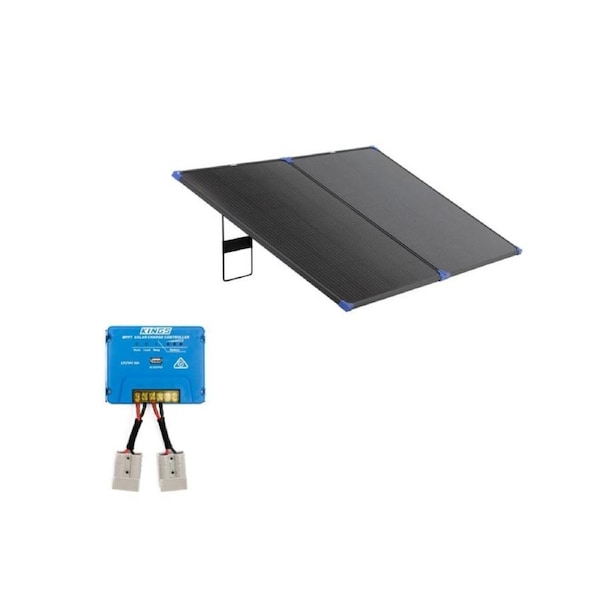

Kings 200W Folding Solar Panel Up to 16.67A at 12V+ 20A MPPT Solar Regulator
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it's suitable for both 12 and 24V systems. Safeguard your battery from the high voltage output of solar panels. It does this by reducing the voltage to the level that the battery requires, for a safe and efficient charge.
• A Maximum Power Point Tracking (MPPT) Controller applies a sophisticated charging algorithm that can constantly track the amount of power that the solar panel is generating from the sun and make the most of it in any conditions - as the conditions and solar panel output change, the MPPT tracks and follows the maximum power point for higher charging output and efficiency.
KINGS 200W FOLDING SOLAR PANEL
200W Output | Bi-Fold Compact Design | Quick Connect Plugs
This panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 20.40V
IMP (Maximum Power Current) 9.90A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 141 x 80 x 1.8 cm
Folded Dimensions 70 x 80 x 4 cm
Weight 8.9 kg
KINGS MPPT REGULATOR
• Highly-Efficient & Powerful MPPT Technology
• Get More Power from Any Solar Panel Compared to PWM Regulators
• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar
• For 4WDs, Caravans, Motorhomes & Off-Grid 12v Setups
• USB outlet & screw terminals for ease of use
• Regulator Type: Maximum Power Point Tracking
• Dimensions: 131×99.5×29.5(mm)（L×W×H）
• Regulator current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems (automatic)
• Maximum Regulator Voltage input: 50V
• No-load current (standby current): <10mA
• Safety: Overload & short circuit protection ≥1.5x rated current
• USB output: 5V 1A
