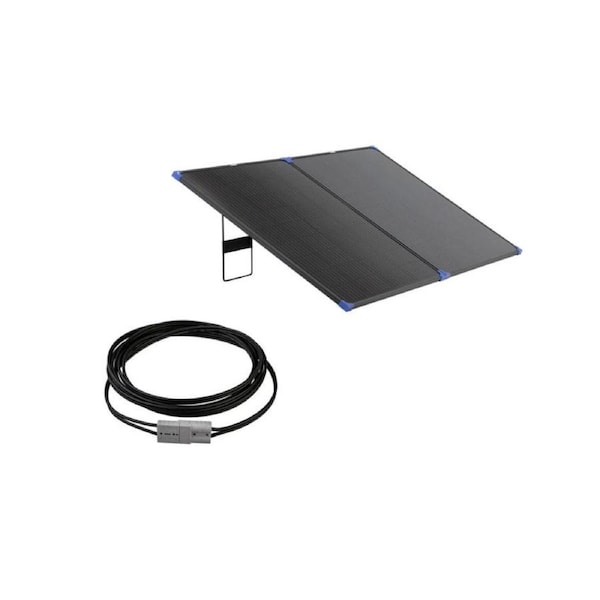

Kings 200W Folding Solar Panel Up to 16.67A at 12V+ 6m Extension Lead
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there's an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too - perfect for your next trip away or your next DIY project!
• The Adventure Kings 6m Solar Extension Lead is the perfect partner for your portable solar blankets or panels. The 6 metre length and simple quick-connect plugs make it easy to make the most of your solar - allowing you to camp in the cool shade and still set up your solar in full sun.
• The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy. Plus they ensure a weatherproof and solid electrical connection into your solar blanket, solar panel, Battery Box or 12V Control Box.
KINGS 200W FOLDING SOLAR PANEL
200W Output | Bi-Fold Compact Design | Quick Connect Plugs
Perfect for capturing power from the sun.With Legs designed to capture maximum sun exposure all day, its ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 20.40V
IMP (Maximum Power Current) 9.90A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 141 x 80 x 1.8 cm
Folded Dimensions 70 x 80 x 4 cm
Weight 8.9 kg
KINGS 6M SOLAR EXTENSION LEAD
2.5mm2 High Quality Copper
Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there's an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
