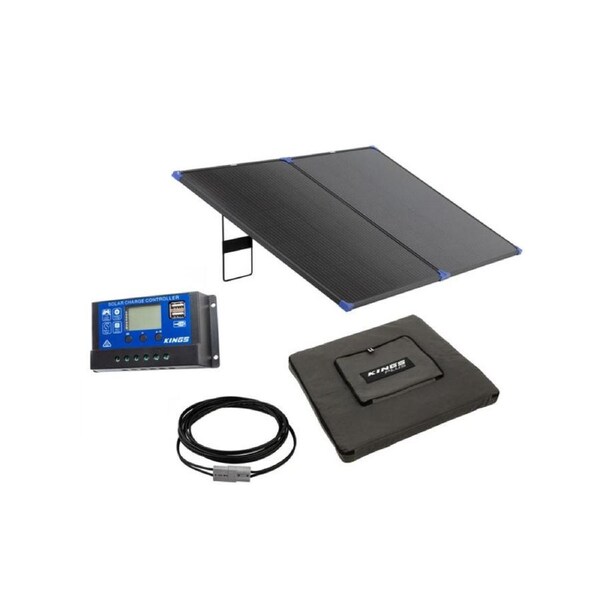

200W Folding Solar Panel + 6m Extension Lead + Folding Solar Panel Bag + 15A PWM Solar Controller
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• A Controller is a must for safeguarding your battery from the high voltage output of solar panels. This controller uses Pulse Width Modulation (PWM )to reduce the solar input voltage to a safer, lower output voltage, Utilising screw in terminals, you can easily connect up to your solar panel and 12V system. The LCD screen allows you to easily change settings to best suit your setup.
• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there's an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too - perfect for your next trip away or your next DIY project!
• Protect your Adventure Kings folding solar panel from the harshest conditions with our dedicated protective cover. This simple yet effective accessory acts as affordable insurance for your solar panel, ensuring it remains in top condition for many years to come.
KINGS 200W FOLDING SOLAR PANEL
This panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit) 24.20V
ISC (Short Circuit) 11.01A
Note VOC and ISC can vary by up to +/-1v and +/-1A
VMP (Max Power) 20.40V
IMP (Maximum Power) 9.90A
ISC Temp Coeff 0.05%/°C
VOC Temp Coeff -0.39%/°C
Pmax Temp Coeff -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dim 141 x 80 x 1.8 cm
Folded Dim 70 x 80 x 4 cm
Weight 8.9 kg
KINGS FOLDING SOLAR PANEL BAG-Protect Your Folding Solar Panels
Material 370GSM gray canvas
Dimensions Internal 70 x 80 x 6.5 cm
Weight 1.4 kg
ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
15A PWM SOLAR CONTROLLER
Specifications:
• Dimensions : 133 x 70 x 34mm
• Mounting Holes: 126 x 49mm
• Max Solar Input: <50V
• Float Charge: 7 - Default, Adjustable
• Discharge Stop: 7 - Default, Adjustable
• Discharge Reconnect: 6V - Default, Adjustable
• USB Output: 5V / 2A
• Weight: 154g
