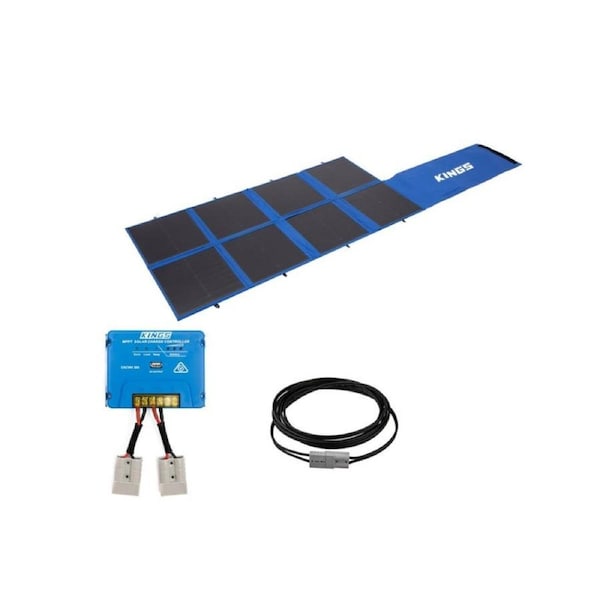

Kings 240W Folding Solar Blanket + MPPT Solar Regulator + 6m Extension Lead
• Each of our solar blankets feature ultra black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film, enhancing durability and longevity of the blanket while maximising sunlight transmittance. The 240W Solar blanket measures in at a generous 165cm long, by 94cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 6cm with an inbuilt wrap around cover,
• Charge your batteries quickly and efficiently with the Adventure Kings 20A MPPT Solar Controller. Rated for up to 50V input it's suitable for both 12 and 24V systems. also includes a temperature sensor that adjusts performance based on conditions. This means safer charging. LARGE ALLOY HEAT SINK - Keeps the internal electronics and microcomputer cool even in tough conditions!
• The MPPT safeguards your battery from the high voltage output of solar panels by reducing the voltage to the level that the battery requires, for a safe and efficient charge. MPPT stands for Maximum Power Point Tracking - the unit maximises the output of the solar panel and can offer up to 30% more power from the same panel compared to a PWM regulator.
• Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there's an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too - perfect for your next trip away or your next DIY project!
KINGS 240W FOLDING SOLAR BLANKET
Output 240W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.37V
ISC (Short Circuit Current) 12.39A
Note NOTE: VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Maximum Power Current) 11.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Quick Connect (Anderson Style) Plug
Open Dimensions 165 x 94 x 0.75cm
Folded Dimensions 44 x 46 x 6cm
Weight 6.6kg
KINGS MPPT SOLAR REGULATOR
Get More Power from Any Solar Panel Compared to PWM Regulators
Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar
For 4WDs, Caravans, Motorhomes & Off-Grid 12v Setups
USB outlet & screw terminals for ease of use
Regulator Type: Maximum Power Point Tracking
Dimensions: 131×99.5×29.5(mm)（L×W×H）
Regulator current rating: 20A charge / discharge
Regulator Voltage: Suitable for 12V or 24V systems (automatic)
Maximum Regulator Voltage input: 50V
No-load current (standby current): <10mA
Safety: Overload & short circuit protection ≥1.5x rated current
USB output: 5V 1A
ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
