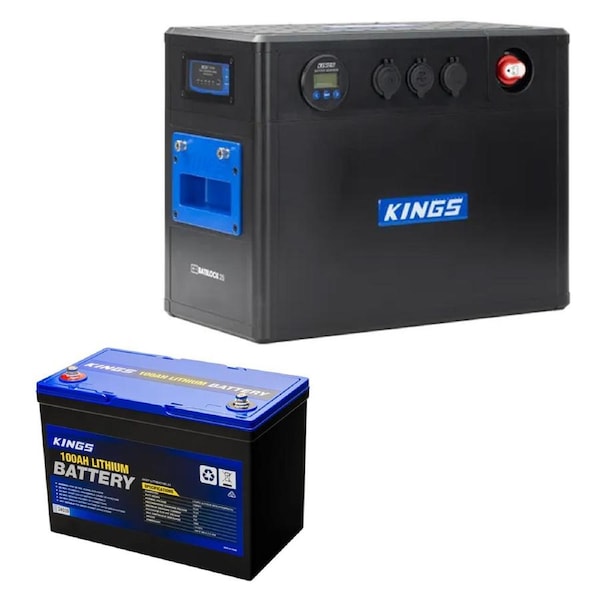

Product includes:
----------------------------------
BATBLOCK25 x 1
12V 100Ah Deep Cycle Lithium LiFePO4 Battery x 1
----------------------------------
• 12 Volt made easy, just add a battery!
• 25A DC DC charger
• Digital battery monitor
• Suits Lithium and AGM batteries
• 4x USB charging ports + 1x cig socket
• 2x Quick connect outputs
• 1x solar input + 1x triple quick connect plug
• Inverter ready terminals
KINGS BATBLOCK25
Max. Supported Battery Size (LxWxH) 330 x 173 x 220 mm
Max. Continuous DCDC Charging Current 25A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium with push button selection
Battery Monitor Display YES - Backlit LCD (V, A, W, Ah, H, °C, %)
Shunt YES - 500A rated
Input / Output 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs 1x Quick connect solar input 1x triple quick connect alternator input
Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch YES - with 200A fuse
Temperature Sensors YES - DCDC charger + battery monitor
Fuses YES - Internal fuses (*external blue ignition wire requires 3A fuse + holder if to be installed into vehicle)
Tie Down Points YES - 4x M8 removable shoulder bolts
Case Material Reinforced ABS
Weight 6.1kg
Dimensions (LxWxH) 441 x 236 x 340 mm (460mm length incl. tie down points)
Warranty 2 Years
KINGS 12V 100AH DEEP CYCLE LITHIUM LIFEPO4 BATTERY
Chemistry LiFePo4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 100Ah
Rated Energy 1280Wh
Nomimal Voltage 12.8v
Max Charging Voltage 14.6v
Rated Float Charge Voltage 14.4v
Discharge Voltage 10v
Max Continuous Discharge Current 100A
Max Pulse Discharge (5S) 200A
Operating Temperature - Charging 0 - 50°C
Operating Temperature - Discharging -20 - +60°C
Life Cycles 2000+
Cell Construction Prismatic
Case Material ABS
Terminals M8 Threaded
Allowed Batteries In Series Bank (Same Batch) 4
Allowed Batteries In Parallel Bank (Same Batch) 2
Dimensions (LxWxH) ~305 x 165 x 215mm
Weight +- 3kg 14.5kg
Warranty 1 year
SKU SC-CO-BATBLOCK25-BATLITH100
Title: Kings BatBlock25
Max. Supported Battery Size (LxWxH): 330 x 173 x 220 mm
Max. Continuous DCDC Charging Current: 25A
MPPT Solar Input Range: 10 - 32V
Compatible Battery Types: Lithium (LiFePO4), AGM, wet lead acid, gel, calcium with push button selection
Battery Monitor Display: YES - Backlit LCD (V, A, W, Ah, H, °C, %)
Shunt: YES - 500A rated
Input / Output: 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs: 1x Quick connect solar input 1x triple quick connect alternator input
Outputs: 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch: YES - with 200A fuse
Temperature Sensors: YES - DCDC charger + battery monitor
Fuses: YES - Internal fuses (*external blue ignition wire requires 3A fuse + holder if to be installed into vehicle)
Tie Down Points: YES - 4x M8 removable shoulder bolts
Case Material: Reinforced ABS
Weight: 6.1kg
Dimensions (LxWxH): 441 x 236 x 340 mm (460mm length incl. tie down points)
Warranty: 2 Years
Note: Battery not included
Title: Kings 12V 100Ah Deep Cycle Lithium LiFePO4 Battery
Chemistry: LiFePO4
Rated Capacity: 100Ah
Rated Energy: 1280Wh
Nominal Voltage: 12.8V
Recommended Charging Voltage: 14.6V
Rated Float Charge Voltage: 14.2V
Low Voltage Cut-off: 10V
Max Continous Discharge Current: 100A
Max Pulse Discharge Current (5 Seconds): 300A
Max Recommended Charge Current: 50A
Max Charging Current: 100A
BMS Protections: Over Charge Voltage, Over Discharge Voltage, Over Charge Current, Over Discharge Current, Short Circuit, Over Temperature, Under Temperature
Operating Temperature - Charging: 0 to 50°C
Operating Temperature - Discharging: -20 to 60°C
Life Cycles: >2000
Cell Construction: Prismatic
Case Material: ABS
Terminals: M8 Threaded
Hardware Included: 2 X M8 Bolts, 2 x Flat Washers, 2 x Spring Washers
Included Wiring: N/A
Allowed Batteries Connected in Series Bank (Same Batch): 4
Allowed Batteries Connected in Parallel (Same Batch): 2
Dimension (LxWxH) ±5mm: 302 x 167 x 216mm
Weight ±1kg: 9.7kg
Warranty: 1 Year
