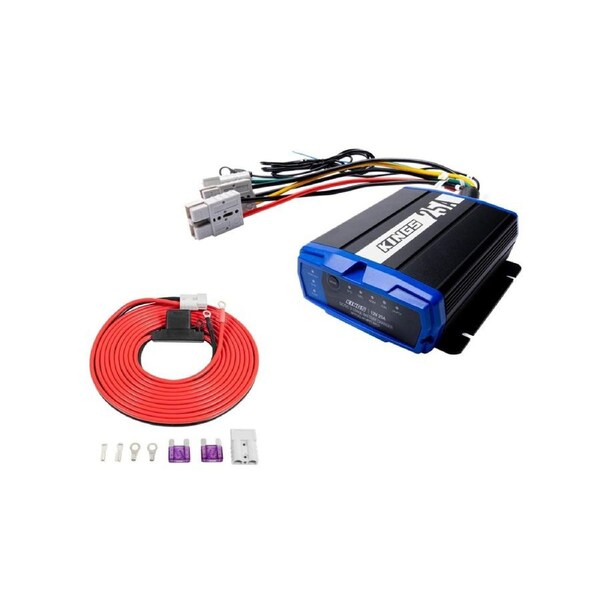

Adventure Kings 25A DC-DC Charger MPPT Solar Regulator- Lithium Compatible - 12/24V Input - IP66 + 25A Wiring Kit 6m 8mmsq 8 AWG
• The Kings 25A DC Wiring Kit perfectly suits the Kings 25A DC Charger and measures in at a thumping six metres long, which gives you all the length you need to reach from your starter battery right to the rear of your vehicle. It's built with 8mm2, 8AWG twin-core wiring, to minimise the voltage drop that comes with using under-sized wiring. M8 ring terminals and quick connect terminals + spares, Ideal for running power to a towbar for trailer charging
• The Kings 25A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you're getting the most charge out of your panel no matter the conditions.
• If, for example, you're driving at night and there is no solar input, the charger will pull only from your alternator. When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging. If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 200W of solar power input.
• Adventure Kings DCDC Chargers can output their stated 25 Amps of charge even in extremely hot ambient temperatures of up to 50°C and internal temperatures around 80°C. There's an internal temperature sensor that monitors the circuit board and electronics to protect and regulate the output of the automatic 5-stage current derating - plus there's the 2m long temp sensor with ring terminal, designed to mount to your battery for highly accurate charge compensation.
The easiest way to connect a Dual battery system allowing input from Vehicle Alternator or Solar Panels
Kings 25A DCDC Charger
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 13.1 - 12.8V
Vehicle Input Working Voltage Range (24V) 26.2 - 25.6V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
Housing Powder coated aluminium
LED Indicator lights Yes - for connection, charging status and errors
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection
Kings 25A Wiring Kit
Wire Length 6 Metres
Wire Gauge Twin Core 8AWG / 8mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Included Fuses 2 x 35A maxi blade fuses
