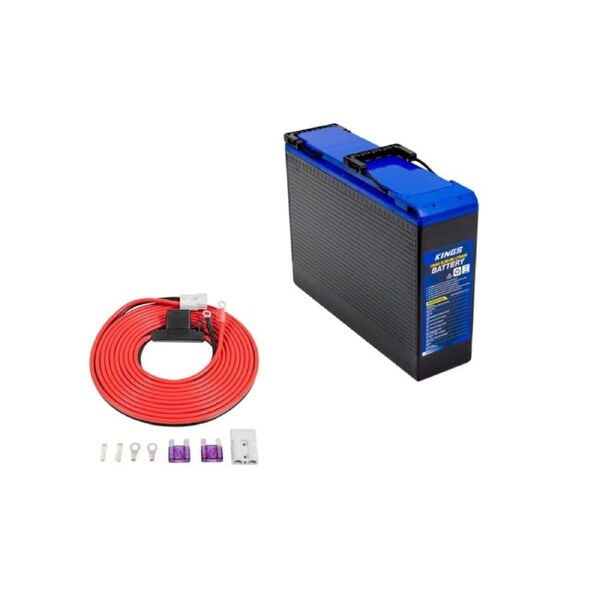

Kings 100AH Slimline Lithium Battery + 25A Wiring Kit For DC chargers and Trailers
• M8 ring terminals and quick connect terminals + spares, Ideal for running power to a towbar for trailer charging
• Lightweight! Just 11kg for 100Ah Battery capacity.
• 2000+ cycles down to 80% depth of Discharge. Safe Lithium Iron Phosphate LiFePO4 chemistry
• Integrated High Quality Battery Management System (BMS)
KINGS 100AH SLIM LITHIUM BATTERY
Weighs just 11kg, is only 110mm wide and makes it easy to have a lithium power system in any vehicle. The case design allows you to mount your Kings 100Ah Slim Lithium Battery just about anywhere - ideal for fitting behind the back seat on modern vehicles.
Warranty 24 Months
Chemistry LiFePO4 (Lithium Iron Phosphate)
Rated Capacity (25A Constant Current to 10V) 100Ah
Cycle Life (0.25C to 80% DoD @25°C) ≥2000
Watt hours 1280Wh
Nominal Voltage 12.8V
Recommended Charge Voltage 14.6V
Discharge cut-off voltage 10V
Recommended Charge / Discharge 25A (0.25C)
Max recharge current 100A
Max continuous discharge 100A
Max pulse discharge (5 seconds) 300A
(BMS) Cell Balancing Current 135±5 mA
BMS Protections Over charge/discharge, over current, high and low temperature charge/discharge
Operating Temperature (Charging) 0°C to +45°C
Operating Temperature (Discharging) -20°C to 55°C
Storage Temperature (~1 Month) -20°C ~ 45°C
Storage Temperature (~1 Year) -10°C ~ 35°C
Weight 11kg
Dimensions 395mm (L) x 110mm (W) x 286mm (H)
KINGS 25A WIRING KIT
The wiring kit is the easiest, most cost-effective way to wire up a DC Charger, a dual battery or, get power to your 12v control box or from your solar panel.
Wire Length 6 Metres
Wire Gauge Twin Core 8AWG / 8mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Included Fuses 2 x 35A maxi blade fuses
