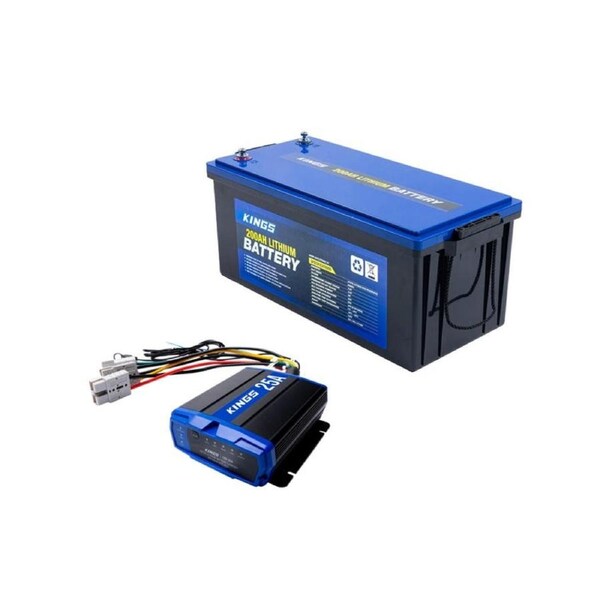

Kings 12V 200Ah Deep Cycle Lithium LiFePO4 Battery + 25A DC to DC Charger
• The Battery Management System (BMS) ensures safe and reliable operation. The quality BMS in this Adventure Kings 200Ah deep cycle lithium battery is rated to output a continuous 200 amps, meaning you can easily connect and power any Kings inverter to run any 240V gear without a worry in the world!
• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) the 200 ah lithium batteries use Lithium Iron Phosphate (LiFePO4) cell chemistry. You can connect up to 2 deep cycle lithium batteries together in parallel to double the rated capacity, or connect up to 4 lithium batteries in series for increased voltage, the choice is yours!
• The Kings 25A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. Connect up the input from your starter battery, the output to your auxiliary battery and then connect solar panel in seconds all thanks to the quick connect plugs. The 25A Charger along with a Kings 50A Wiring Kit is the perfect combo for an easy plug and play install!
• If, for example, you're driving at night and there is no solar input, the charger will pull only from your alternator. When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging. If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 200W of solar power input.
KINGS 200AH DEEP CYCLE LITHIUM LIFEPO4 BATTERY
Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 200Ah
Rated Energy 2560Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Rated Float Charge Voltage 14.4V
Discharge Cut off Voltage 10V
Max Continuous Discharge Current 200A
Max Pulse Discharge (5 Seconds) 240A
Operating Temperature - Charging 0 - +50°C
Operating Temperature - Discharging -20 - +60°C
Cell Construction Prismatic A Grade
Case ABS
Terminals M8 Threaded
Batteries in Series (Same Batch) 4
Batteries in Parallel (Same Batch) 2
Dimension (LxWxH) +-1cm ~507 x 202 x 215
Weight +-3kg ~23Kg
KINGS 25A DCDC CHARGER
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions 151x 121x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) internal + external with M8 ring terminal
LED Indicator lights Yes - for connection, charging status and errors
Battery Chemistry Selection - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied
IP66
Built-in Protection-Over Voltage, Reverse Polarity, Over-Temperature Protection
