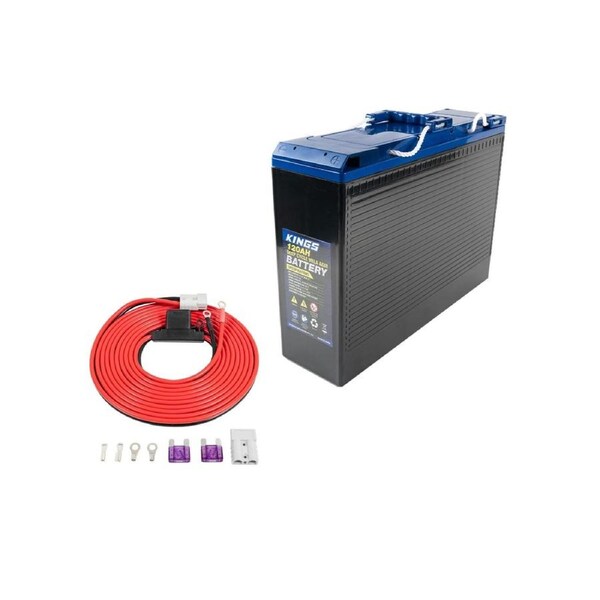

Kings 120AH Slimline AGM Battery + 25A Wiring Kit for DC chargers and Trailers
• M8 ring terminals and quick connect terminals + spares, Ideal for running power to a towbar for trailer charging
• 120Ah Battery capacity lets you run a fridge at camp for up to 60 hours before recharging
• Fully-sealed design is safe to run inside your vehicle or ute canopy. Maintenance-free design for long life
• Up to 5 times faster recharging than normal lead acid batteries
120AH DEEP CYCLE SLIMLINE AGM BATTERY
The slimline design makes it perfect to fit behind your seats, next to your rear drawers or even laying flat to keep weight and your vehicle's centre of gravity down low.
Battery Type Deep Cycle VRLA AGM Slimline
Battery Chemistry Maintaince Free Lead Acid
Lead Grid Purity 99.7%
Nominal Capacity (C20 to 10.5V) 12V
Nominal Capacity (C20 to 1.75V/cell) 120Ah
Cycles at 30% Depth of Discharge Up to 1800
Cycles at 50% Depth of Discharge Up to 1000
Charge Voltage at 25°C 14.1-14.7V (-4mV/ °C / cell)
Float Charge Voltage at 25°C 13.5-13.8V (-3mV/ °C / cell)
Max Charging Current 33A
Internal Resistance (Fully Charged) ~4mΩ
Maximum Discharge Current (5 seconds) 960A
Self Discharge Rate (Per Month) ~3.3%
Operating Temperature - Discharging -10°C to +40°C
Operating Temperature - Charging -10°C to +40°C
Operating Temperature - Storage -20°C to +40°C
Terminals M8 Threaded Copper with Colour-Coded Sealed Epoxy Blocks.
Hardware Included 2x M8 Bolts, 2x Flat Washers, 2x Spring Washers
Case Material ABS
Dimensions (LxWxH) 410 x 110 x 286 mm (Height to Top of Terminal Cap)
Weight ~31kg
KINGS 25A WIRING KIT
The wiring kit is the easiest, most cost-effective way to wire up a DC Charger, a dual battery or, get power to your 12v control box or from your solar panel.
Wire Length 6 Metres
Wire Gauge Twin Core 8AWG / 8mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Included Fuses 2 x 35A maxi blade fuses
