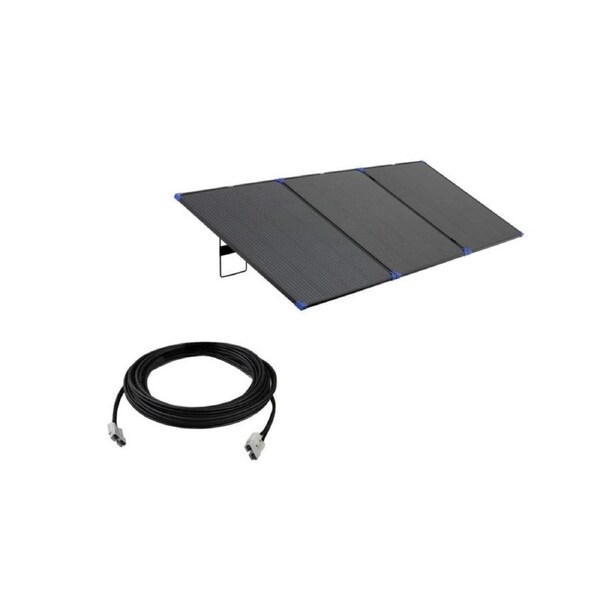

Kings 300W Folding Solar Panel Up to 25A at 12V + 12m Extension Lead
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• The 300W Solar panel measures in at a generous 211.5cm wide, by 80cm high and just 1.8cm thick. It packs down to a compact 70 x 80 x 6cm and weighs only 13.3kg, meaning it is compact enough to fit in the back of your 4WD, trailer or van.
• Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they're up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there's an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too - perfect for your next trip away or your next DIY project!
• The 12m Solar Extension Lead is the perfect partner for your portable solar blankets and panels. The 12-metre length and Kings quick-connect plugs make it easy to make the most of your solar - allowing you to camp in the cool shade and still set up your solar in full sun.
KINGS 300W FOLDING SOLAR PANEL 300W Output
Tri-Fold Compact Design | Quick Connect Plugs
Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures. 2.0mm tempered glass and a lightweight slimline extruded aluminum frame
Output 300W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 16.52A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 20.40V
IMP (Maximum Power Current) 14.75A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 211.5 x 80 x 1.8 cm
Folded Dimensions 70 x 80 x 6 cm
Weight 13.3 kg
KINGS 12M EXTENSION LEAD
Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they're up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation.
Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V
