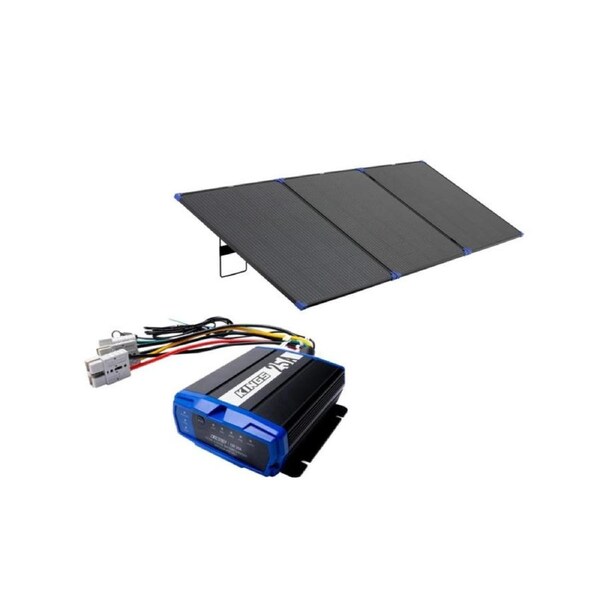

Kings 300W Folding Solar Panel Up to 25A at 12V + 25A DCDC Charger
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• The DCDC Charger has an MPPT Solar Regulator that will track the maximum power point of a solar panel, at a min of 15W input. If, you drive at night with no solar input, the charger will pull only from your alternator. When you turn off your vehicle, the DCDC will automatically swap over to solar charging. If you're driving in the sun with both alternator and solar input, the DCDC will prioritise solar input once it reaches the changeover threshold of 200W of power input.
• A tough alloy housing means it is able to survive harsh conditions and continues to perform even in extreme temperatures. The Kings DCDC offers a 5-stage automatic current derating system that reduces power to protect the unit in extreme conditions. The internals are IP66 rated for excellent environmental protection thanks to the fully silicon potted circuit board.
• Adventure Kings DCDC Chargers can output their stated 25 Amps of charge even in extremely hot ambient temperatures of up to 50°C and internal temperatures around 80°C. There's an internal temperature sensor that monitors the circuit board and electronics to protect and regulate the output of the automatic 5-stage current derating - plus there's the 2m long temp sensor with ring terminal, designed to mount to your battery for highly accurate charge compensation.
KINGS 25A DCDC CHARGER
The Kings 25A DCDC Charger integrates an MPPT solar regulator to maximize the power from a connected solar panel, requiring at least 15W input. At night, it charges exclusively from the alternator. During daylight driving with both solar and alternator input, it prioritizes solar charging once solar input hits 200W.
Max. Continuous Charging Current: 25A
Max. Output Power: 300W
Max. Input Current: 27A
Vehicle Input Volt Range:
12V system: 11.8 - 18V
24V system: 23.6 - 32V
Min. Input Start-up Voltage:
Vehicle: 10V to recognize battery (12V to start charging)
Without Ignition Wire: 13.8V
Solar Input Range: 10 - 32V
Min. Aux Battery Voltage:
Lithium: 0V (Wake Function)
Lead Acid: 4V
Idle Current Draw: 15mA
Operating Temp: -20°C to 80°C (with 5-stage current derating)
Dimensions: 151mm x 121mm x 44mm
Weight: ~1kg
Temp Compensation: Yes ±18mV/°C
Temp Sensors: Internal + external with M8 ring terminal
Housing: Powder-coated aluminum
LED Indicators: For connection, charging status, and errors
Battery Chemistry Selection: Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses Required: Yes, 50A suggested (not supplied)
IP Rating: IP66
Built-in Protections: Over Voltage, Reverse Polarity, Over-Temperature Protection
KINGS 300W FOLDING SOLAR PANEL
Output: 300W
Power Tolerance: +/- 5%
VOC (Open Circuit Voltage): 24.20V
ISC (Short Circuit Current): 16.52A
VMP (Maximum Power Voltage): 20.40V
IMP (Maximum Power Current): 14.75A
Temperature Coefficients:
ISC: 0.05%/°C
VOC: -0.39%/°C
Pmax: -0.44%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection: Kings Quick Connect (Anderson Style) Plug
Dimensions:
Open: 211.5 x 80 x 1.8 cm
Folded: 70 x 80 x 6 cm
Weight: 13.3 kg
