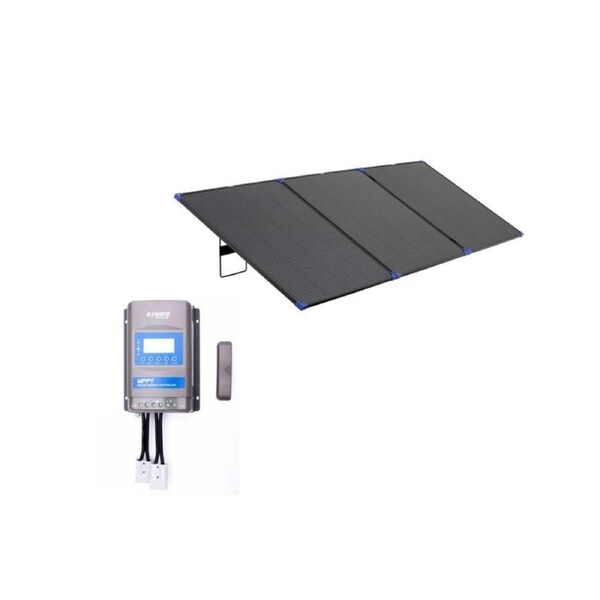

Kings 300W Folding Solar PanelUp to 25A at 12V+ Plus 20A MPPT Solar Regulator
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
• For the solar input side, it will accept up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it's able to efficiently and effectively charge your batteries! It's lithium compatible and even has specific profiles for Lithium Iron Phosphate batteries like the Adventure Kings range, plus 24V Lithium Iron Phosphate as well as 3 different profiles for lithium nickel cobalt manganese
• In the box you get the MPPT Charge Controller, a pair of Kings Quick Connect Plugs with double insulated 6mm2 wire that are compatible with all Adventure Kings solar panels with the same quick connect plugs, PLUS a temperature sensor that plugs into the unit. Without the temperature sensor plugged in, the unit will continue to function and will default all settings to 25°C. Below the terminal cover there are screw terminals that accept up to 16mm2 or 6AWG wiring - as well as an RS485 communications port that allows for data logging or connection to a computer by attaching optional RS485 compatible components.
KINGS 300W FOLDING SOLAR PANEL
The Adventure Kings 300W Folding solar panel is perfect for capturing power from the sun. With legs designed to capture maximum sun exposure all day, this panel is ideal for charging large battery banks to run power hungry setups.
Output: 300W
Power Tolerance: +/- 5%
VOC (Open Circuit Voltage): 24.20V
ISC (Short Circuit Current): 16.52A
VMP (Maximum Power Voltage): 20.40V
IMP (Maximum Power Current): 14.75A
Temperature Coefficients:
ISC: 0.05%/°C
VOC: -0.39%/°C
Pmax: -0.44%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection: Kings Quick Connect (Anderson Style) Plug
Dimensions:
Open: 211.5 x 80 x 1.8 cm
Folded: 70 x 80 x 6 cm
Weight: 13.3 kg
It accepts up to 390W of power from 12V nominal solar panels and 780W from 24V panels. With over 98% max conversion efficiency and less than 15 milliamps of standby power it's able to efficiently and effectively charge your batteries!
AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings
