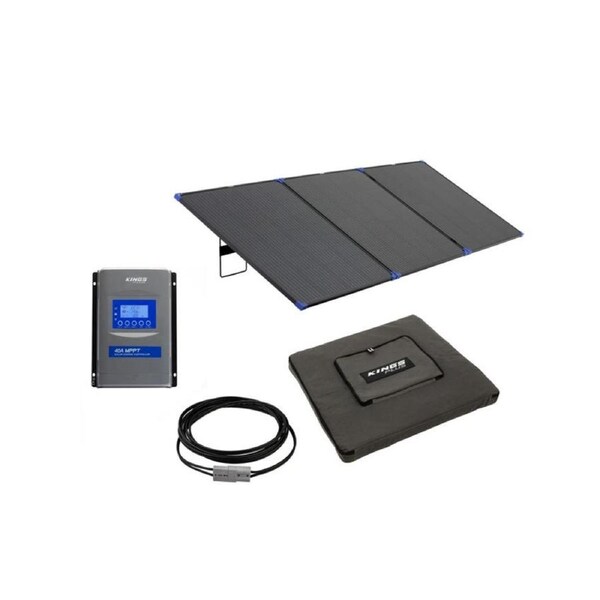

Kings 300W Folding Solar Panel + 6m Extension Lead + Folding Solar Panel Bag + Plus 40 AMP MPPT Solar Regulator
• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.
KINGS 300W FOLDING SOLAR PANEL
Output: 300W
Power Tolerance: +/- 5%
VOC (Open Circuit Voltage): 24.20V
ISC (Short Circuit Current): 16.52A
VMP (Max Power Volt): 20.40V
IMP (Max Power Current): 14.75A
Temp Coeff :
ISC: 0.05%/°C
VOC: -0.39%/°C
Pmax: -0.44%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection: Quick Connect (Anderson Style) Plug
Open: 211.5 x 80 x 1.8 cm
Folded: 70 x 80 x 6 cm
Weight: 13.3 kg
ADVENTURE KINGS PLUS PREMIUM 40 AMP MPPT SOLAR REGULATOR
Battery Chemistry Options Sealed, Gel, Flooded, Lifepo4,Li(NiCoMn)O2
Display Backlit LCD + LED Indicator Lights
Terminal Type Screw Terminals
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions 255 X 185 X 68mm
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 92V
Rated Solar Power Input 520W (12V) 1040w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings
KINGS FOLDING SOLAR PANEL BAG
Pockets 1 Main solar panel Pocket & 1 accessory pocket
Material 370GSM gray canvas
Dimensions Internal 70 x 80 x 6.5 cm
Weight 1.4 kg
ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 QUALITY COPPER
Length 6m
Conductor Material Copper 51x0.25
Conductor Area (each wire) 2.5mm2
Insulation 0.8mm PVC
Outer Sheath 1mm PVC
Outer Dia 9.3mm
Recommended Max Current 20A
Operating Temp Range -5°C~+70°
Plug Anderson-style Quick Connect , 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Maximum Rated Voltage 300V
