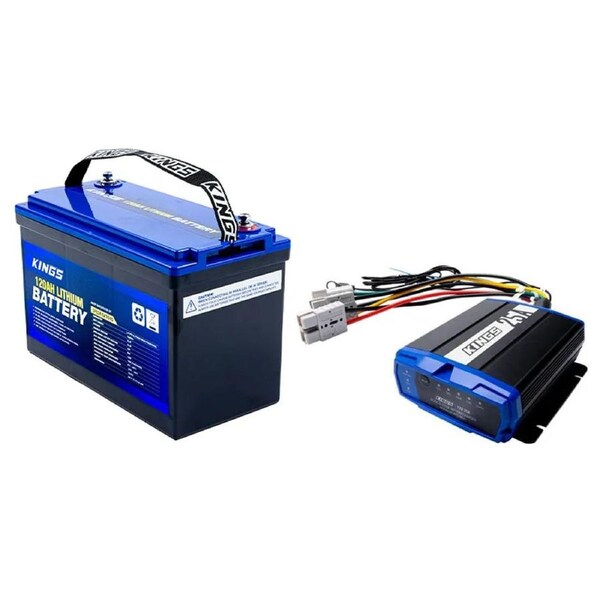

Adventure Kings 25A 12V DCDC Charger + 120A Lithium Battery Prismatic Cells LiFePO4
• Battery Management Systemin the 120 ah ensures safe and reliable operation. The BMS intelligently monitors each individual cell and balances their use to ensure your battery is charging and discharging evenly. It will also disconnect thelithium deep cycle battery to prevent damage from high or low temperatures, high or low voltage, overload and even short circuits. The quality BMS in this Adventure Kings 120Ah Deep Cycle Lithium Battery is rated to output a continuous 120 Amps. This means that you can easily connect and power a Kings 500W or 1500W inverter that will run most of your 240V gear conveniently off grid.
• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) Adventure Kings deep cycle lithium batteries use Lithium Iron Phosphate (LiFePO4) cell chemistry. At Adventure Kings we vigorously test lithium batteries and ensure that they are certified according to Australian lithium battery safety standards
• ETFO Charging Technology; Designed, engineered and tested in Australia; Lithium (LiFePO4) Compatible
Kings 25A DCDC Charger
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) internal + external with M8 ring terminal for accurate battery temperature
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes
Kings 120Ah Lithium LiFePO4 Battery | Quality integrated BMS | 2000+ Cycles | Long Life
Chemistry LiFePO4 (Lithium Iron Phosphate)
Cell Type Grade A Prismatic
Cell Configuration 4S1P
Rated Capacity 120Ah (40A Constant Current discharge to 10V)
Watt hours 1536WH
Nominal Voltage 12.8V
Charge voltage 14.6V
Discharge cut-off voltage 10V
Recommended Charge/Discharge 24A (0.2C)
Max recharge current 60A
Max continuous discharge 120A (25°C)
Max pulse discharge (5 seconds) 150A
(BMS) Cell Balancing Voltage 3.5±0.05 Volts per cell
(BMS) Cell Balancing Current 35±5 mA
BMS Protections Over charge, over discharge, over current
Weight 15.9KG
Dimensions 330(W) X 173(D) X 220(H) MM
