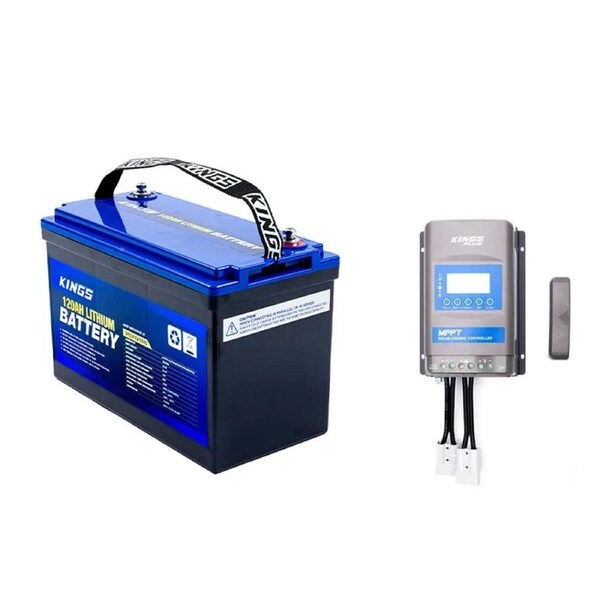

Adventure Kings 120Ah Lithium Battery Prismatic Cells LiFePO4+ Premium MPPT Solar Regulator
• Battery Management Systemin the 120 ah ensures safe and reliable operation. The BMS intelligently monitors each individual cell and balances their use to ensure your battery is charging and discharging evenly. It will also disconnect thelithium deep cycle battery to prevent damage from high or low temperatures, high or low voltage, overload and even short circuits. The quality BMS in this Adventure Kings 120Ah Deep Cycle Lithium Battery is rated to output a continuous 120 Amps. This means that you can easily connect and power a Kings 500W or 1500W inverter that will run most of your 240V gear conveniently off grid.
• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) Adventure Kings deep cycle lithium batteries use Lithium Iron Phosphate (LiFePO4) cell chemistry. At Adventure Kings we vigorously test lithium batteries and ensure that they are certified according to Australian lithium battery safety standards
• Lithium & AGM Compatible MPPT regulator for your 12V or 24V system! Powerful 20A charge rating! Accepts up to 390W of solar on 12V Systems!
• User-programmable with push-button switching between Lithium, Sealed (AGM), Gel and Flooded charge profiles. digital display shows real-time amps, volts, watts and battery capacity percentage
Kings 120Ah Lithium LiFePO4 Battery
Lithium batteries are lighter and allow a down to 0% every day without affecting the battery's life. Adventure Kings Lithium Battery can be discharged and still last 2000 cycles.
Chemistry LiFePO4 (Lithium Iron Phosphate)
Cell Type Grade A Prismatic
Cell Configuration 4S1P Rated Capacity
120Ah (40A Constant Current discharge to 10V)
Watt hours 1536WH
Nominal Voltage 12.8V
Charge voltage 14.6V
Discharge cut-off voltage 10V
Recommended Charge/Discharge 24A (0.2C)
Max recharge current 60A
Max continuous discharge 120A (25°C)
Max pulse discharge (5 seconds) 150A
(BMS) Cell Balancing Voltage 3.5±0.05 Volts per cell
(BMS) Cell Balancing Current 35±5 mA
BMS Protections Over charge, over discharge, over current
Operating temperature charging 0°C TO +45°C
Operating temperature discharging -20°C TO +55°C
Weight 15.9KG
Dimensions 330(W) X 173(D) X 220(H) MM
Kings Plus Premium 20A MPPT Solar Regulator
AGM And Lithium Compatible (12V/24V) Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings
