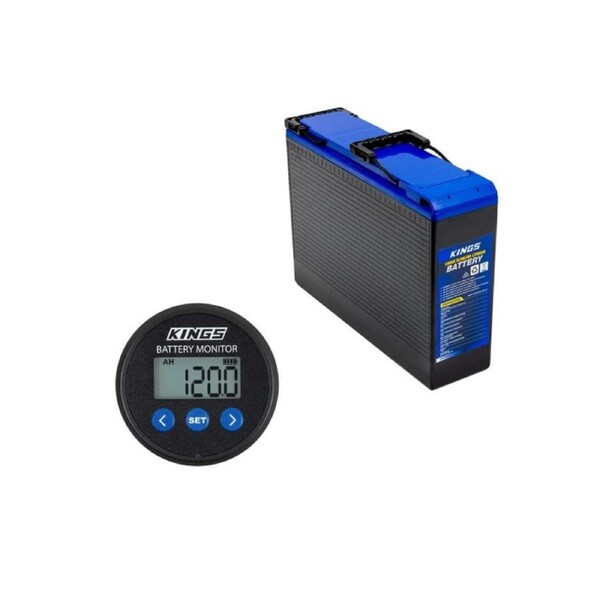

Kings 500A Battery Monitor with Shunt + 100AH Slim Lithium Battery
• Lithium or AGM, 12V or 24V Compatible. 500A Shunt and temperature sensor included
• Settable over/under-voltage, over-current and over-temperature alarms
• Lightweight! Just 11kg for 100Ah capacity! Safe Lithium Iron Phosphate LiFePO4 chemistry
• 2000+ cycles down to 80% depth of Discharge. modern slim line design. Integrated High Quality Battery Management System (BMS)
KINGS 100AH SLIM LITHIUM BATTERY
Weighs just 11kg, is only 110mm wide and makes it easy to have a lithium power system in any vehicle. The case design allows you to mount your Kings 100Ah Slim Lithium Battery just about anywhere - ideal for fitting behind the back seat on modern vehicles.
Warranty 24 Months
Chemistry LiFePO4 (Lithium Iron Phosphate)
Rated Capacity (25A Constant Current to 10V) 100Ah
Cycle Life (0.25C to 80% DoD @25°C) ≥2000
Watt hours 1280Wh
Nominal Voltage 12.8V
Recommended Charge Voltage 14.6V
Discharge cut-off voltage 10V
Recommended Charge / Discharge 25A (0.25C)
Max recharge current 100A
Max continuous discharge 100A
Max pulse discharge (5 seconds) 300A
(BMS) Cell Balancing Current 135±5 mA
BMS Protections Over charge/discharge, over current, high and low temperature charge/discharge
Operating Temperature (Charging) 0°C to +45°C
Operating Temperature (Discharging) -20°C to 55°C
Storage Temperature (~1 Month) -20°C ~ 45°C
Storage Temperature (~1 Year) -10°C ~ 35°C
Weight 11kg
Dimensions 395mm (L) x 110mm (W) x 286mm (H)
KINGS 500A BATTERY MONITOR WITH SHUNT
Lithium or AGM, 12V or 24V Compatible
Supply Voltage Range 8V ~ 100V
Measurable Voltage Range 8V ~ 100V
Measurable Current Range 0 ~ 500A
Working current (with backlight on) 10mA
Working current (with backlight off) 7.5mA
Standby Current <2mA
Compatible Battery Voltage 12V/24V/36V/48V
Battery Capacity Range 1Ah ~ 999Ah
Measurable Battery Temperature -25°C ~ 60°C
Working Temperature -10°C ~ 50°C
Diameter 63mm
Required Mounting Hole Diameter 55mm
Maximum Mounting Panel Thickness 10mm
Temperature Sensor Yes, 3m length
