Adventure Kings 300AH Lithium LiFePO4 Battery Prismatic Cell+ 40A DCDC Charger
• The BMS ensures safe and reliable operation. intelligently monitors each individual cell and balances their use to ensure your battery is charging and discharging evenly. The quality BMS in this Adventure Kings 300Ah deep cycle lithium battery is rated to output a continuous 300 amps, meaning you can easily connect and power any Kings inverter to run any 240V gear without a worry in the world!
• SUPER SAFE LITHIUM IRON PHOSPHATE CHEMISTRY (LiFePO4) PARALLEL AND SERIES CONNECTION You can connect up to 2 deep cycle lithium batteries together in parallel to double the rated capacity, or connect up to 4 lithium batteries in series for increased voltage, the choice is yours!
• 40 Amp Multi-Stage Battery Charger, Built-in MPPT Solar Regulator with Solar Priority Charging
• 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!
KINGS 40A DCDC CHARGER KINGS 40A DCDC CHARGER
Max. Continuous Charging Current 40AMax. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

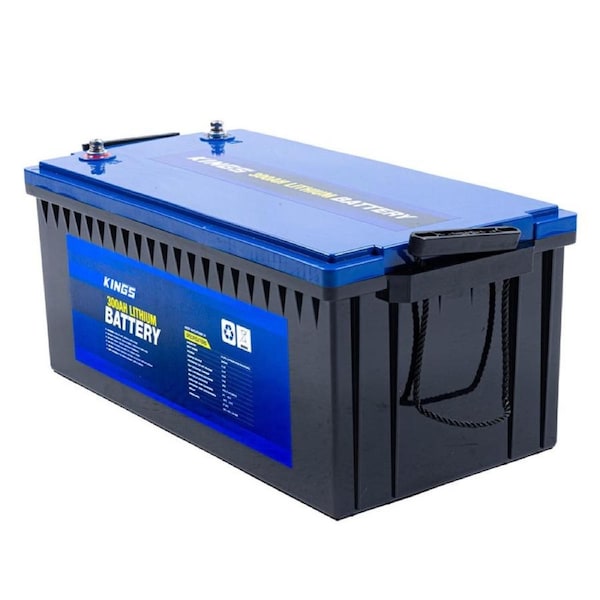

KINGS 300AH LITHIUM LIFEPO4 BATTERY
Chemistry LiFePO4 (Lithium Iron Phosphate)
BMS Protections Over Charge, Over Discharge, Over Current
Rated Capacity 300Ah
Rated Energy 3840Wh
Nominal Voltage 12.8V
Max Charging Voltage 14.6V
Rated Float Charge Voltage 14.4V
Discharge Cut off Voltage 10V
Max Continuous Discharge Current 300A
Max Pulse Discharge (5 Seconds) 360A
Operating Temperature - Charging 0 - +50°C
Operating Temperature - Discharging -20 - +60°C
Cell Construction Prismatic
Case Material ABS
Terminals M8 Threaded
Allowed Batteries Connected in Series Bank (Same Batch) 4
Allowed Batteries Connected in Parallel Bank (Same Batch) 2
Dimension (LxWxH) +-1cm ~520 x 269 x 220mm
Weight +-3kg ~38.2kg
