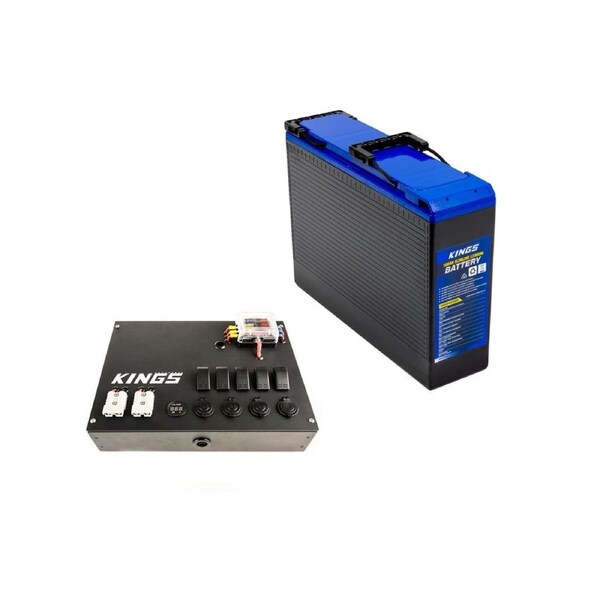

Adventure Kings 100AH Slim Lithium Battery + 12V Control Box
• Lightweight! Just 11kg for 100Ah capacity! 2000+ cycles down to 80% depth of Discharge
• Control Box - for all your 12V Equipment. 5x 16A pre-wired switches, 3x Cig Sockets, and 2x USB ports. Digital Voltage Indicator
• Ideal for your 4WD, Canopy, Caravan or Cargo Area
Chemistry LiFePO4 (Lithium Iron Phosphate)
Rated Capacity (25A Constant Current to 10V) 100Ah
Cycle Life (0.25C to 80% DoD @25°C) ≥2000
Watt hours 1280Wh
Nominal Voltage 12.8V
Recommended Charge Voltage 14.6V
Discharge cut-off voltage 10V
Recommended Charge / Discharge 25A (0.25C)
Max recharge current 100A
Max continuous discharge 100A
Max pulse discharge (5 seconds) 300A
(BMS) Cell Balancing Current 135±5 mA
Operating Temperature (Charging) 0°C to +45°C
Operating Temperature (Discharging) -20°C to 55°C
Storage Temperature (~1 Month) -20°C ~ 45°C
Storage Temperature (~1 Year) -10°C ~ 35°C
Weight 11kg
Dimensions 395mm (L) x 110mm (W) x 286mm (H)
KINGS 12 V CONTROL BOX
The twin 50A quick-connect plugs are both directly connected to your battery, meaning you can run power in from a Kings 50A Wiring Kit (sold separately) or your solar blanket or panel.
Box Material ABS Molded Plastic
Box Size 230 * 180 * 85 mm
Product Size 250 * 210 * 130 mm
Weight 0.90 KG
Lid Thickness 3mm
Box Thickness 3mm
Recommended Fuse Size for Batteries 40A
Recommended Cable Size for Batteries Depending on Length
0 - 2m = 8 Gauge Battery Cable (8mm2)
2 - 4m = 6 Gauge Battery Cable (13mm2)
