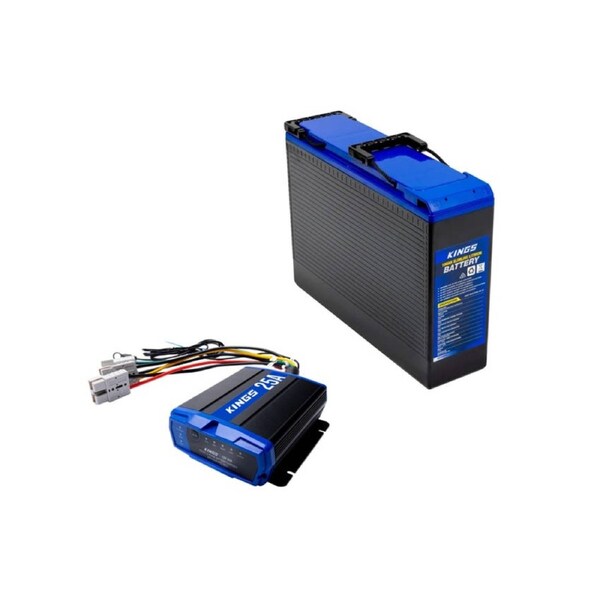

Kings 100AH Slim Lithium Battery + 25A 12V DC to DC Charger
• Lightweight! Just 11kg for 100Ah capacity! 2000+ cycles down to 80% depth of Discharge
• 25 Amp Multi-Stage Battery Charger, Built-in MPPT Solar Regulator with Solar Priority Charging
• Push Button Battery Type Selection for Lithium or AGM.
• 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!
Chemistry LiFePO4 (Lithium Iron Phosphate)
Rated Capacity (25A Constant Current to 10V) 100Ah
Cycle Life (0.25C to 80% DoD @25°C) ≥2000
Watt hours 1280Wh
Nominal Voltage 12.8V
Recommended Charge Voltage 14.6V
Discharge cut-off voltage 10V
Recommended Charge / Discharge 25A (0.25C)
Max recharge current 100A
Max continuous discharge 100A
Max pulse discharge (5 seconds) 300A
(BMS) Cell Balancing Current 135±5 mA
Operating Temperature (Charging) 0°C to +45°C
Operating Temperature (Discharging) -20°C to 55°C
Storage Temperature (~1 Month) -20°C ~ 45°C
Storage Temperature (~1 Year) -10°C ~ 35°C
Weight 11kg
Dimensions 395mm (L) x 110mm (W) x 286mm (H)
KINGS 25A DCDC CHARGER
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes,
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
