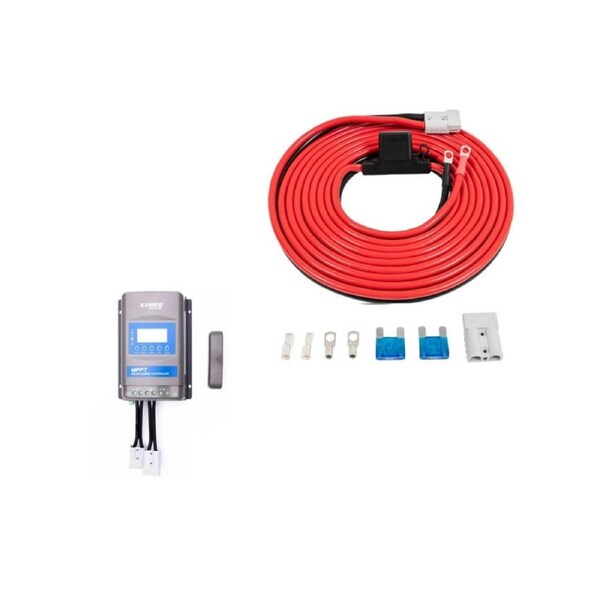

Adventure Kings 20A MPPT Solar Regulator lithium compatible + 6m 50A Wiring Kit 6 AWG
• 20A charge rating! Accepts up to 390W of solar on 12V Systems! digital display shows real-time amps, volts, watts and battery capacity percentage
• Includes 2 x 50A Kings Quick-Connect plugs plus plug-in temperature sensor
• Six metres of 6AWG, 16mm2 twin-core wire in the Wiring kit. Pre-connected in-line fuse holder and fuses.
• Pre-terminated with M8 ring terminals and quick connect terminals + spares. Ideal for running power to a towbar for trailer charging
This 20A solar charge controller is lithium compatible. It can suit just about any setup - AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating - and it has a 3 year warranty.
AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs
Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings
KINGS 50A WIRING KIT
The Adventure Kings 50A Wiring Kit is the easy way to run power from the front to the rear of your vehicle or connect up any accessories that require high power. It's an all in one kit for running power to your draw bar, plus it's the perfect base if you're making a DIY 12V system. this kit has just abot everything you need to connect up to most DC-DC chargers. It's the perfect base for a permanent 12V install.
Wire Length 6m
Wire gauge Twin Core 6 AWG (16mm2)
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted plug/ terminal types Pre-fitted anderson style plug and 8mm eye terminals
Extra terminals included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Spare Fuse included 2 x 60A maxi blade fuses
