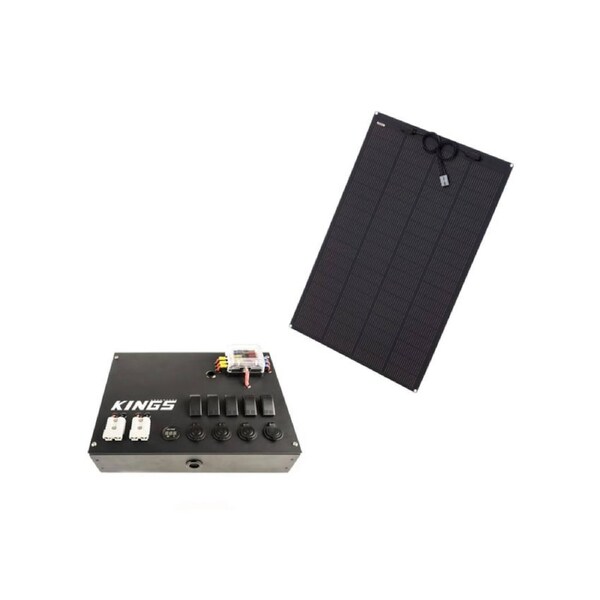

Adventure Kings 12V Control Box + 160W Semi-Flexible Solar Panel
• Above that you'll see 5 x 16Amp rated rocker switches - these are pre wired with fused power so you can easily switch any added accessories and circuits on and off. You even get a sheet of pre-labelled stickers to customise your setup for your own needs!
• Adventure Kings Semi-Flexible solar panels are the perfect choice for a permanent 12V set up on your vehicle! They're low profile, durable and efficient. The Adventure Kings 160W semi-flexible solar panel is great for permanent, low profile surface mounting, enhancing the sun's power all day, every day.
• Designed so they can be easily fixed to your canopy, roof rack, trailer, caravan or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces. Measuring in at 120cm by 78cm and 0.25cm thick (not including the small junction boxes) and weighing under 4kg, they're a great choice where you want big power without sacrificing fuel economy
• They're constructed with tough and durable PET (Polyethylene Terephthalate) which is polished smooth so it's easy to clean. Adventure Kings Semi-Flexible Solar Panels also have built in bypass diodes that mean if one cell is dirty or shaded the others will continue working at maximum efficiency.
KINGS 160W SEMI-FLEXIBLE SOLAR PANEL
Up to 13.33A of charge at 12V| Grade A PET coated solar cells
The 160W semi-flexible solar panel is great for permanent, low profile surface mounting. Designed so they can be easily fixed to your canopy, roof rack, trailer, caravan or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces.
They also have built in bypass diodes that mean if one cell is dirty or shaded the others will continue working at maximum efficiency.
Output 160 Watts
VMP (Maximum Power Voltage) 19.5 Volts
IMP (Maximum Power Current) 8.21 Amps
ISC (Short Circuit Current) 8.98 Amps
VOC (Open Circuit Voltage) 23.4 Volts
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect Anderson Style Plug
Dimensions (Open) 120 x 78 x 0.25cm
Weight 2.8 kg
12V CONTROL BOX
• 5x 16a Pre-Wired Switches, 3x Cig Sockets And 2x USB Ports
• Ideal For Your 4wd, Canopy, Caravan or Cargo Area
• Easy To Access Fuse Holder
• Dual 20a Quick-Connect Fittings
• Box Material: Black powder coated laser cut aluminum
• Box Size: 400 x 305 x 80mm
• Weight: 2.74kg
• Lid Thickness: 2mm
• Box Thickness: 1.5mm
• DCDC Charger: Provisions for CTEK D250SA or Kings DCDC Charger
• Coating: Black Powder Coating
• Recommended Fuse Size for Batteries: 40A
• Recommended Cable Size for Batteries Depending on Length:
• 0-1m = 8 Gauge Battery Cable
• 1-3m = 6 Gauge Battery Cable
