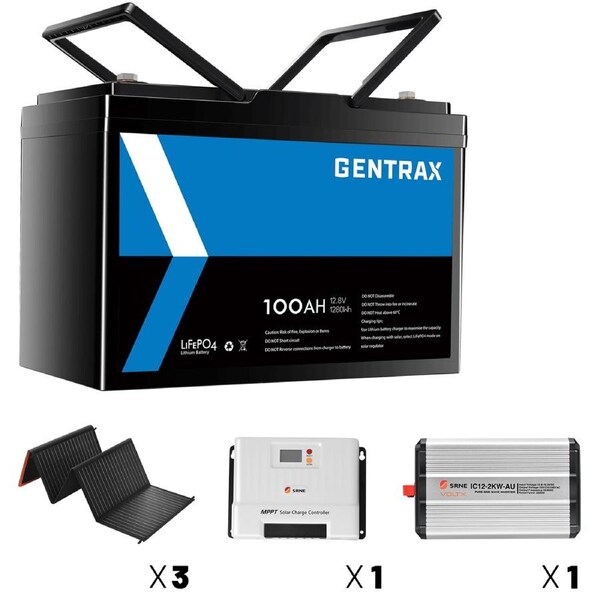

GENTRAX 12V Lithium Battery, Inverter, Controller, 300W Solar

• Brand: GENTRAX
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Rated Energy: 1280Wh
• Approx Life Cycles: ≥3000
• Battery Manage System: 100A
• Standard Charging Current: 50A
• Max. Charging Current: 100A
• Standard Discharge Current: 100A
• Max. Continuous Discharge Current: 100A
• Max. Discharge Current 5 sec: 200A

• Charger: 14.6V 50A (not include)
• Charging Voltage: 14.2-14.6V
• Absorption Voltage: 14.2-14.6V
• Float Voltage: 13.6V
• Overcharge Protection: 15V
• Overcharge Recovery: 14.4V
• Overdischarge Protection: 11.2V
• Overdischarge Recovery: 10.6V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Charging Way: LiFePO4 Charger, Solar Panel, Generator
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Standard
• Battery Shape: General
• Certifications: UN38.3
• Protection Class: IP65
• Warranty in Years: 2
• Bolt Type: M8
• Bolt Material: Iron nickel-plated
• Cell Grouping: 4S2P
• Parallel Connection: Max 4
• Series Connection: No

• Product Size: L306 x W169 x H215mm
• Package Size: L360 x W230 x H271mm
• Bolt Terminal Size: Hexagon x 14mm
• Bolt Terminal Perimeter: 25.12mm
• Net Weight: 9.5kg
• Gross Weight: 10.4kg

• 1x 100Ah Lithium Battery
• 2x Terminal Bolts M8*14
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Rated Output Power: 2000W
• Rated Output Power VA: 2000VA
• Withstand Instantaneous Impact Power: 4000W
• Rated Output Voltage: 220VAC/230VAC/240VAC(±3%)
• Output Frequency: 50/60HZ(±0.2%)
• Output Wave: Pure sine wave
• Output Harmonic Component: THDV > 3% (pure resistance load)
• Load Power Factor: 0.2-1 (load power ≤ output continuous power)
• Rated Input Voltage: 12VDC
• Input Voltage Range: 10.8~16.0VDC
• Rated Output Efficiency: >92%
• Maximum Output Efficiency: > 93.5% (30% overload)
• Standby Current: <0.24A
• No-load Current: <1.0A
• USB Interface: Dual USB output, 5VDC/2A
• ON/OFF/ECO Mode: ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
• ECO Starting Power: ＜30W
• ECO Interval Time: 1min
• TTL Interface: Non-isolated TTL communication, power supply 12.5V/200mA
• Indicator: Green - normal operation; Red - fault
• External Switch Contact Interface: Switch on or off by control equipment such as external relay and mechanical switch
• Protection Function: Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
• Operating Ambient Temperature: -20℃~60℃
• Storage Ambient Temperature: -35℃~80℃
• Relative Humidity: ≤95%
• IP Grade: IP20
• Heat-dissipating Method: Natural heat dissipation + intelligent air cooling
• Noise Level: ≤60dB
• Warranty: 3 Years

• Dimensions: 409 x 249 x 120mm
• Mounting Hole Spacing: 374 x 141mm
• Fixed Hole Position: 5mm
• Net Weight: 6.5kg

• Maximum Power:100W
• Max Power Voltage:18V
• Open-Circuit Voltage: 22.4V
• Short-Circuit Current: 5.88A
• Cell Efficiency: 23.5%
• Maximum System Voltage: 1000V
• Temperature Range: -20°C to 65°C
• Power Tolerance: 0-5%
• Standard Test Conditions: AM=1.5,E=1000W/m², TC=25°C
• Solar Cell: Mono Grade A
• Net Weight: 3.1kg
• IP Rating: IP65

• System voltage: 12V/24V
• Rated charging current: 40A
• Static power consumption: ≤10mA
• Maximum solar panel power: 520W/12V; 1040W/24V
• Maximum PV open-circuit voltage: 100V (95V protection, 90V recovery)
• MPPT operating voltage range: (Battery voltage +2V)~72V
• Battery operating voltage range: 8V-32V
• MPPT tracking efficiency: >99%
• Charging conversion efficiency: 85%-98% (10%-100% of rated power)
• Rated load current: 20A
• Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
• TTL communication: Baud rate: 9,600 bps
• RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.
• Bluetooth communication: Optional
• CAN communication: RJ45 interface, optional (RV-C protocol)
• Historical data: Save the last 200 days of historical data
• Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection.
• Grounding type: Grounding of common negative electrode
• Cooling mode: Natural heat dissipation
• Charging current setting: Yes
• Full-charging setting: Yes
• Constant voltage output setting: Yes
• Charging temperature compensation of lead-acid battery: Yes
• Temperature unit setting: Yes
• Overload/Short-circuit protection: Yes

• Protection grade: IP32
• Operating ambient temperature range: -35°C~65°C

• Dimension: 228*160*72mm
• Mounting hole spacing: 214*133mm
• Weight: 1750g
• Fixed hole position: Φ5mm
