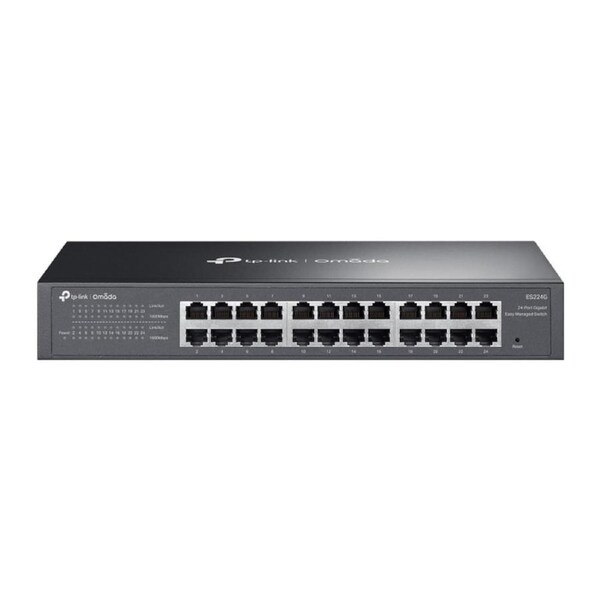

[ES224G] Omada 24-Port Gigabit Easy Managed Switch

TP-Link ES224G, Omada 24-Port Gigabit Easy Managed Switch

• 24x 10/100/1000Mbps RJ45 ports
• Easy to Use: Supportsplug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app
• VLAN, Port Isolation, Cable Test?, QoS? for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/rack mounting design
• Learn more about Omada Cloud SDN>?

HARDWARE FEATURES

• Interface :24x 10/100/1000 Mbps RJ45 Ports
  Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity :Fanless
• Installation :Desktop
  Rackmountable
• Physical Security Lock :?
• Power Supply :100-240 V~50/60 Hz
• Dimensions ( W x D x H ) :11.6 x 5.5 x 1.7 in (294x 140 x 44 mm)
• Surge Protection :±6kV

PERFORMANCE

• Switching Capacity :48 Gbps
• Packet Forwarding Rate :35.7 Mpps
• MAC Address Table :8K
• Packet Buffer Memory :4 Mbit
• Jumbo Frame :15 KB

SOFTWARE FEATURES

• Quality of Service :Port-based/802.1p/DSCP QoS
  8 Priority Queues
  Priority Schedule Mode
  - WRR (Weighted Round Robin)
  Queue Weight Config
  Bandwidth Control
  - Port-Based Rating Limit
  Storm Control
  - Multiple Control Modes (kbps/pps)
  - Broadcast/Multicast/Unknown-Unicast Control^?
• L2 Features :Static Link Aggregation
  Loop Prevention / Loopback Detection
  Flow Control
  - 802.3x Flow Control
  Mirroring
  - Port Mirroring
  - One-to-One
  - Many-to-One
  - Ingress/Egress/Both
  Port Statistics
  - Port Mirror Status
  - Traffic Statistics
  802.1ab LLDP
• L2 Multicast :IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
• VLAN :MTU VLAN
  Port-Based VLAN
  802.1Q Tag VLAN
  - Max 32 VLAN Groups
  - 4K VID
• Transmission Method :Store-And-Forward

MANAGEMENT

• Omada App :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :Omada Cloud-Based Controller
  Omada Hardware Controller
  Omada Software Controller
• Cloud Access :Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning :Yes. Requires the use of Omada Cloud-Based Controller
• Management Features :Web-based GUI
  DHCP Client
  Cable Diagnostics
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Unified Configuration

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :ES224G
  Power Cord
  Rubber Feet
  Mounting Brackets
  Screws
  Installation Guide
• Environment :Operating Temperature: -5?~50? (23?~122?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
