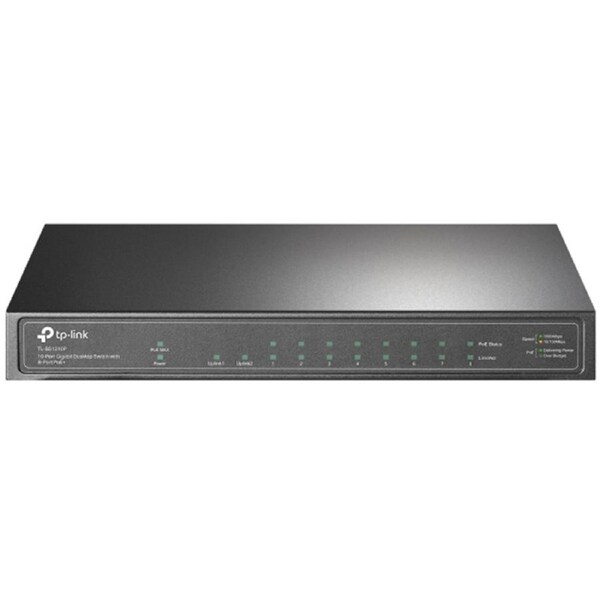

TP-Link 10 Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+ (TL-SG1210P)
SPECIFICATIONS:
HARDWARE FEATURES | |
Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
Packet Forwarding Rate | 14.88 Mpps |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
Mac Address Table | 4K |
Jumbo Frame | 16 KB |
Switching Capacity | 20 Gbps |
Dimensions ( W x D x H ) | 209 126 26 mm |
Max Power Consumption | 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) |
Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
SOFTWARE FEATURES | |
Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
Environment | Operating Temperature: 0C~40C (32F~104F) Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
