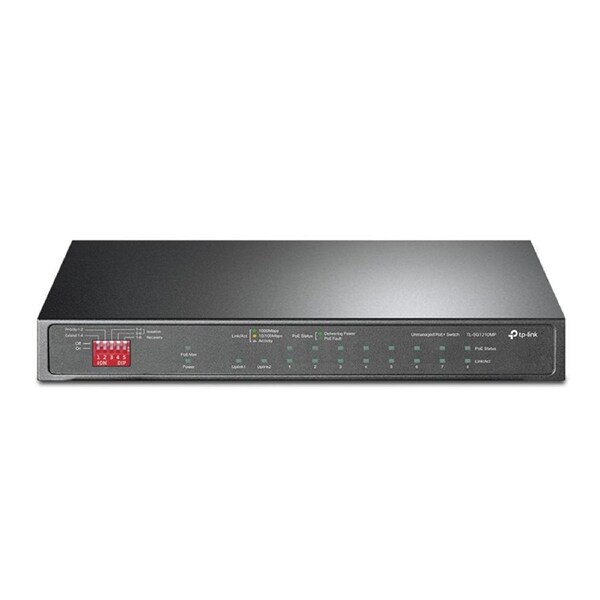

TP-Link 10 Port Gigabit Desktop Switch with 8 Port PoE+ (TL-SG1210MP)
SPECIFICATIONS:
Interface | • 9 10/100/1000 Mbps RJ45 Ports • 1 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
Packet Forwarding Rate | 14.88 Mpps |
PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1-8 • Power Supply: 123 W |
Mac Address Table | 4K |
Jumbo Frame | 16 KB |
Switching Capacity | 20 Gbps |
Dimensions ( W x D x H ) | 8.2 4.9 1.0 in (209 126 26 mm) |
Max Power Consumption | • 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected) |
Max Heat Dissipation | • 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected) |
SOFTWARE FEATURES | |
Transmission Method | Store-And-Forward |
Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1-2) • Isolation Mode Button (Ports 1-4 / 5-8) • PoE Auto Recovery (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Contents | • TL-SG1210MP • Power Adapter • Installation Guide |
Environment | • Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
Notes | *PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type. |
