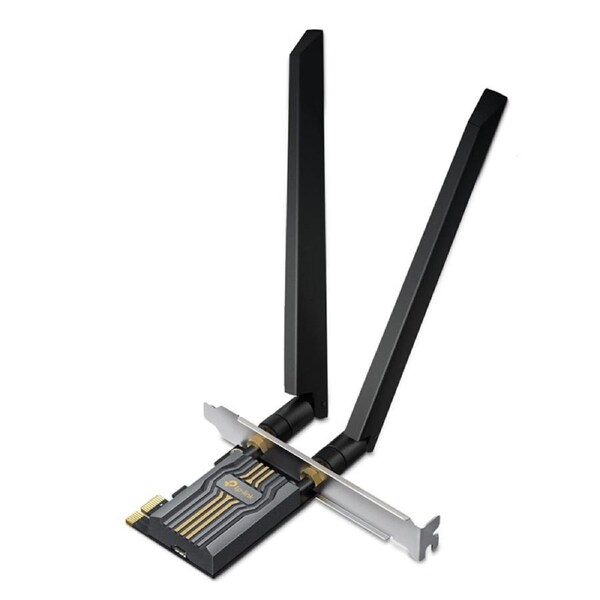

TP-Link Archer BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (Archer TBE400E)
SPECIFICATIONS:
HARDWARE FEATURES | |
Dimensions | 4.8 3.09 0.85 in (120.8 78.5 21.5 mm) |
Antenna Type | 2 High-Performance Tri-Band Antennas |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
WLAN Signal Rate | 6 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up t0 2402Mbps(dynamic)
11be: Up to 2882 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic)
2.4 GHz: 11be: Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
WLAN Reception Sensitivity | 6 GHz: 11ax HE20 MCS0: -94 dBm 11be EHT320 MCS13: -44dBm
5 GHz: 11ac VHT20 MCS0: -94 dBm 11be EHT160 MCS13: -48dBm
2.4 GHz: 11n HT20 MSC0: -95 dBm 11be EHT40 MSC13: -56dBm |
WLAN Transmit Power | 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP) 5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP) 6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP) |
WLAN Modes | Infrastructure mode |
Wireless Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
OTHERS | |
Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
Package Contents | Archer TBE400E 2x High-Performance Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
System Requirements | Supported operating system: Windows 11(64-bit) only |
Environment | Operating Temperature: 0~40 (32 ~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Accessories Specifications | Bluetooth Header Cable Length: 0.3 m |
Notes | †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location. ‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), and other features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color requires the AP and PC OS to also support the corresponding features. The 160 MHz bandwidth may be unavailable in some regions/countries due to regulatory restrictions. §Certain features of Archer TBE400E, such as Bluetooth 5.4, may be restricted on some computing systems and platforms. Please try to update the device's driver for feature compatibility. *Actual network speed may be limited by the rate of the product's PCI Express Interface, Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, operating system factors, and other environmental conditions. **Use of WPAЗ requires APs to also support the corresponding feature. |
