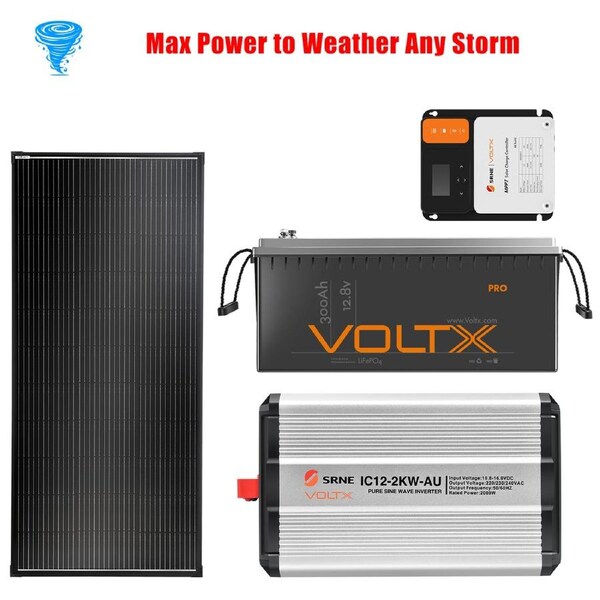

VoltX 12V Lithium Battery 300Ah + 200W Solar Panel + Solar Charge Controller + 3KW Inverter
MODEL1: 1* 12V 300Ah Lithium Battery
Nominal Capacity: 300Ah
Usable Capacity: 300Ah
Nominal Voltage: 12.8V
Energy: 3840wh
Charge Voltage: 14.6V
Discharge Cut-off Voltage: 10V
Charge Method: CC/CV
Charger: 14.6V
Standard Discharge Current: 200A
Max. Continues Discharge Current: 300A
Max. Discharge Current 5 Sec: 600A
Standard Charge Current: 100A
Max. Charge Current: 300A
Dimensions: L: 520 x W: 269 x H:220mm
Working Temperature Range: Charge 0°C to 45°C, Discharge: -20°C to 60°C
Storage Temperature: -10°C to 50°C
Warranty: 5 years
MODEL2: 1* 200W Fixed Solar Panel
Open-Circuit Voltage (Voc): 22.86V
Maximum Power Voltage (Vmp): 18.74V
Module Efficiency STC (%): 19.66%
Maximum System Voltage: 1000V
Power Tolerance: 0-5W
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C
Temperature Coefficients of Pmax: -0.34%°C
Temperature Coefficients of Voc: -0.28%°C
Temperature Coefficients of lsc: +0.05%°C
Nominal Operating Cell Temperature (NOCT): 45±2°C
Cell: Mono grade A
Cell Tech: PERC
Module Application Class: A
Cell Efficiency: ≥23%
IP level: IP65
Product Size(mm): 1480*670*35mm
Box Size (mm): 1500*690*50mm
N.W(KG): 11KG
G.W(KG): 11.9KG
Certifications: CE/ISO
Warranty: 5 years
Solar Panel Size(mm): 1480*670*35mm
Solar Panel Box Size (mm): 1500*690*50mm
MODEL3: 1* 12V/24V 30A MPPT Solar Charge Controller
ELECTRICAL PARAMETERS
Static power consumption: ≤30mA
Battery Type: USE/FLD/GEL/LI/SLD(Default)
System voltage: 12V/24V
Battery's operating voltage range: 8V-32V
Rated charging current: 30A
Maximum PV Input Current: 27A
Maximum solar panel power: 400W/12V; 800W/24V
Maximum PV open-circuit voltage: 150V
MPPT operating voltage point range: (Battery Voltage +2)~110V
MPPT tracking efficiency: >99%
Charging conversion efficiency: 85%-98% (10%-100% of rated power)
Rated load current: 30A
Load operating mode: Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened.
TTL communication: Baud Rate 9600kps
RS485 communication: One isolated RS485 communication port, with power output of 5V200mA, baud rate of 9,600kps by default and adjustable.
Bluetooth communication: Built-in
CAN communication: RV-C Protocol
Historical data: Can store historical data of the past 300 days
Protection function: PV Overvoltage Protection, PV Reverse Connection Protection, PV Short-Circuit Protection, Nighttime Reverse Charge Protection, Input Limited Power Protection, Overtemperature Protection, Load Short-Circuit Protection, Load Overload Protection, Battery Supervoltage/Over-discharge Protection, Battery Reverse Connection Protection and Battery Terminal Short-Circuit Protection.
Grounding type: Co-negative design and negative grounding
Cooling mode: Natural Cooling
Parallel connection for charging: No
Charging voltage line loss compensation: No
Support full settings: Yes
Constant voltage output setting: Yes
Charging temperature compensation of lead-acid battery: Yes
Temperature protection: Yes
Overload/short-circuit protection: Yes
Load pre-start: Yes
ENVIRONMENTAL DATA
Protection grade: IP32
Operating ambient temperature range: -35°C~ 65°C (no derating within 45°C if well ventilated)
MECHANICAL SPECIFICATIONS
Dimension: 260*216*83.2mm
Mounting hole spacing: 200 mm
Weight: 2.3kg
Fixed hole position: Φ10mm
MODEL4: 1* 12V 3000W Solar Inverter
Rated output power:3000W
Rated output power VA:3000VA
Withstand instantaneous impact power:6000W
Rated output voltage:220VAC/230VAC/240VAC(±3%)
Output frequency:50/60HZ(±0.2%)
Output wave:Pure sine wave
Output harmonic component: THDV < 3% (pure resistance load)
Load power factor:0.2-1 (load power ≤ output continuous power)
Rated input voltage: 12VDC
Input voltage range:10.8~16.0VDC
Rated output efficiency: >87.0%
Maximum output efficiency:> 91.5% (30% overload)
Standby current:<0.24A
No-load current:<1.45A
USB interface:Dual USB output, 5VDC/2A
ON/OFF/ECO mode:ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
ECO starting power:<30W
ECO interval time:1min
TTL interface:Non-isolated TTL communication, power supply 12.5V/200mA
Indicator:Green - normal operation; Red - fault
External switch contact interface:Switch on or off by control equipment such as external relay and mechanical switch
Protection function:Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
Operating ambient temperature:-20°C~60°C
Storage ambient temperature:-35°C~80°C
Relative humidity:≤95%
Protection grade:IP20
Heat-dissipating method:Natural heat dissipation + intelligent air cooling
Noise:≤60dB
Net weight:8.0kg
Warranty : 3 Years
Product dimension:409*249*120mm
Installation dimension:374*141*Φ5mm
Tips for Bluetooth functionality:
Additional Bluetooth module is required to achieve Bluetooth functionality.
