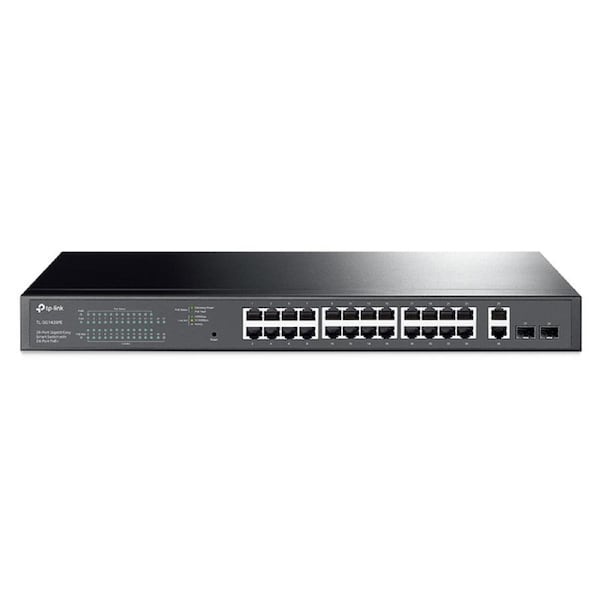

TP-Link 28 Port Gigabit PoE Switch - UN/3.0 (TL-SG1428PE)
SPECIFICATIONS:
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface | 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |
Power Supply | 100-240V AC, 50/60 Hz |
PoE Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W |
Dimensions ( W x D x H ) | 17.3 8.7 1.73 in (440 220 44 mm) |
Mounting | Rack Mountable |
Max. Power Consumption | 27 W (220/50Hz. no PD connected) 304.7 W (220/50Hz. with 250 W PD connected) |
Max. Heat Dissipation | 92.07 BTU/h (no PD connected) 1039.03 BTU/h (with 250 W PD connected) |
PERFORMANCE | |
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 41.7 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
Quality of Service | Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management Features Web-Based GUI Easy Smart Configuration Utility Transmission Method Store-And-Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Content | TL-SG1428PE Power Cord Installation Guide Rackmount Kit Rubber Feet |
Environment | Operating Temperature: 0C~50C (32F~122F) Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
