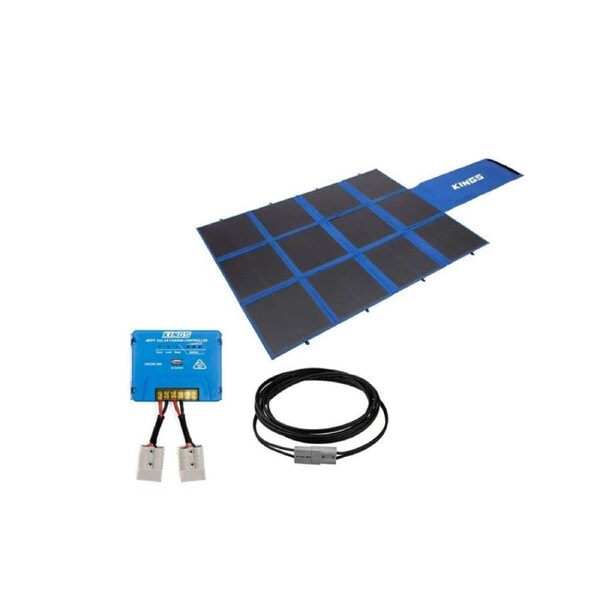

Kings 360W Folding Solar Blanket Grade A PET coated cells+ 6m Extension Lead + MPPT Solar Regulator
• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.
KINGS 360W FOLDING SOLAR BLANKET
Grade A PET coated cells
360W to keep your devices charged wherever you go camping, traveling.
Output 360W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions (LxWxH) 165 x 142 x 0.75cm
Folded Dimensions (LxWxH) 44 x 46 x 9cm
Weight 9.6kg
MPPT REGULATOR
• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar
• For 4WDs, Caravans, Motorhomes & Off-Grid 12v Setups
• USB outlet & screw terminals for ease of use
• Dimensions: 131×99.5×29.5(mm)
• Regulator current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems
• Maximum Regulator Voltage input: 50V
• No-load current (standby current): <10mA• USB output: 5V 1A
6M SOLAR EXTENSION LEAD
2.5MM2 COPPER
Conductor Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation 0.8mm PVC
Outer Sheath 1mm PVC
Outer Diameter 9.3mm
Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Maximum Rated Volt 300V
