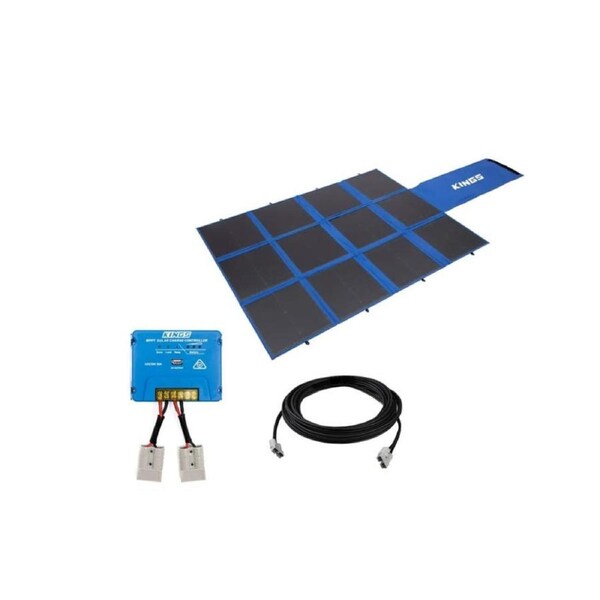

Kings 360W Folding Solar Blanket Grade A PET coated cells + 12m Extension Lead + MPPT Solar Regulator
• 2.34m² surface area and thoroughly tested using our in-house solar simulator to meet industry standards. The 360W Solar blanket measures a generous 165cm long by 142cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 9cm with an inbuilt wrap-around cover, meaning it will fit just about anywhere in the back of your 4WD.
360W FOLDING SOLAR BLANKET
360W output to keep your devices charged wherever you go. Its lightweight and compact design makes it easy to transport and store. Enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film.
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.147V
ISC (Short Circuit Current) 18.85A
IMP (Maximum Power Current) 16.71A
VMP (Voltage at Maximum Power) 21.60V
ISC Temperature Coefficient 0.05%/°C
Pmax Temp Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Kings Quick Connect (Anderson Style) Plug
Open 165 x 142 x 0.75cm
Folded 44 x 46 x 9cm
Weight 9.6kg
12m SOLAR LEAD
Conductor Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Section (each wire) 6mm2
Insulation 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Max Current 20A
Plug Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug UL94-V0 Flame Resistant Thermoplastic
Connector Copper
Maximum Rated Voltage DC 1500V
MMPT REGULATOR
• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar
• For 4WDs, Caravans, Motorhomes & Off-Grid 12v Setups
• USB outlet & screw terminals for ease of use
• Dimensions: 131×99.5×29.5(mm)（L×W×H）
• Regulator current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems (automatic)
• Maximum Regulator Voltage input: 50V
• No-load current (standby current): <10mA
• Safety: Overload & short circuit protection ≥1.5x rated current
• USB output: 5V 1A
