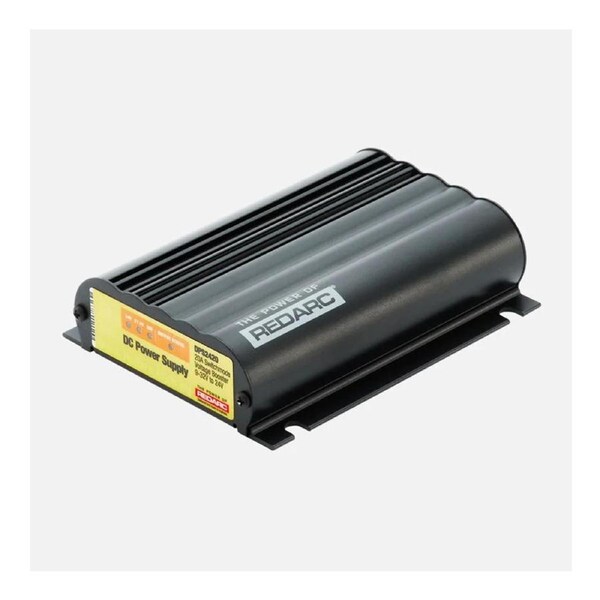

Redarc 24v 20amp In Vehicle DC Power Supply
Redarc 24v 20amp In Vehicle DC Power Supply
The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.
In some cases, the DPS is a great option for those looking to install an auxiliary battery.
The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 24V automotive power system.
The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.
Fully encapsulated in REDARC s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.
Benefits
More efficient with regulated output power
Improved functionality and reduced installation complexity
Protects against surges/spikes and incorrect connections
Features
Fully encapsulated
Ignition controlled
No fan for reduced noise
Highly efficient design
Wide input voltage range
User selectable output voltage
Redarc 24v 20amp In Vehicle DC Power Supply
Redarc 24v 20amp In Vehicle DC Power Supply
The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.
In some cases, the DPS is a great option for those looking to install an auxiliary battery.
The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 24V automotive power system.
The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.
Fully encapsulated in REDARC s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.
Benefits
More efficient with regulated output power
Improved functionality and reduced installation complexity
Protects against surges/spikes and incorrect connections
Features
Fully encapsulated
Ignition controlled
No fan for reduced noise
Highly efficient design
Wide input voltage range
User selectable output voltage
Redarc 24v 20amp In Vehicle DC Power Supply
The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides greater efficiency with regulated power for all sensitive load requirements with voltage output from a 24V automotive power system
More Information
gtin_barcode - 9338628003839
brand - REDARC
No Load Current - <100mA
Standby Current - <5mA
Conversion Efficiency - >94%
Operating Temperature - -50 C to 50 C
Weight - 680 g
height - 37 mm
width - 120 mm
depth | length - 150 mm
Warranty - 2 Years
Input Voltage - 9 - 32V
Output Voltage - 24V DC
Max. Rated Output Current - 20A
Input Fuse Rating - 60A
Output Fuse Rating - 40A
