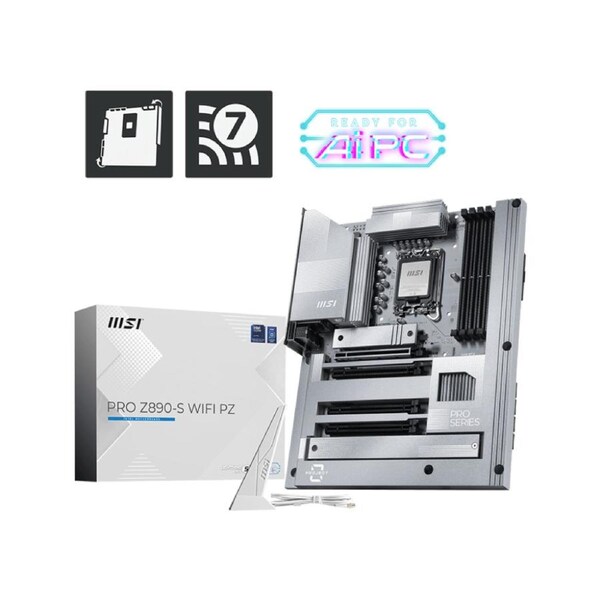

MSI PRO Z890-S WIFI PZ MOTHERBOARD
| Chipset | INTEL Z890 |
| CPU Support | Intel(R) Core(TM) Ultra Processors (Series 2) LGA 1851 Socket |
| Memory | 4x DDR5 UDIMM, Max Capacity: 256GB |
| Memory Speed | 8800 - 6400 (OC) MT/s 6400 - 4800 (JEDEC) MT/s |
| Memory Overclocking | Supports Intel(R) XMP 3.0 Dual-Controller Dual-Channel mode |
| Onboard Graphics | 1x HDMI(TM) 2.1 (4K 60Hz) 1x DisplayPort 1.4 (4K 60Hz) 1x Type-C DisplayPort (Thunderbolt 4, 4K@120Hz / 8K@60Hz) |
| PCIe Slots | 4x PCI-E x16 Slots: PCI_E1 (PCIe 5.0 x16, from CPU) PCI_E2 (PCIe 3.0 x1, from Chipset) PCI_E3 (PCIe 4.0 x4, from Chipset) PCI_E4 (PCIe 4.0 x4, from CPU) |
| Audio | Realtek(R) ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 3x M.2 Slots: M.2_1 (PCIe 5.0 x4, from CPU) M.2_2 (PCIe 4.0 x4, from Chipset) M.2_3 (PCIe 4.0 x4 / SATA, from Chipset) 4x SATA 6G |
| RAID Support | SATA: RAID 0, 1, 5, 10 M.2 NVMe: RAID 0, 1, 5 |
| Thunderbolt | 1x Thunderbolt 4 Port (Rear) Supports up to 40Gbps (Thunderbolt) Supports USB4 (20Gbps) Supports USB 3.2 (10Gbps) Supports 8K Display |
| USB Ports | Front: 4x USB 2.0 2x USB 5Gbps Type-A 1x USB 20Gbps Type-C Rear: 6x USB 5Gbps Type-A 1x USB 20Gbps Type-C |
| LAN | Realtek(R) 8125D 2.5Gbps LAN |
| Internal I/O | 1x Thunderbolt 5 Card Connector (JTBT5) 1x ATX Power Connector 2x CPU Power Connector 1x PCIe Power Connector (8-pin) 1x CPU Fan 1x Combo Fan (Pump/Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller Connector (JDASH) 3x Addressable V2 RGB LED Connectors 1x RGB LED Connector (JRGB) 1x TPM Pin Header (Supports TPM 2.0) |
| Wireless LAN & Bluetooth | Intel(R) Wi-Fi 7 Supports MU-MIMO TX/RX (2.4GHz / 5GHz / 6GHz, up to 5.8Gbps) Supports 802.11 a/b/g/n/ac/ax/be Bluetooth(R) 5.4 (Windows 11 24H2 Ready) |
| LED Features | 4x EZ Debug LED |
Ship out the order within 24-48 hours.
Estimated Delivery Time Frame: 2 - 15 business daysChange of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.
Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.
Warranty
Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.
Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:
· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.
· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
