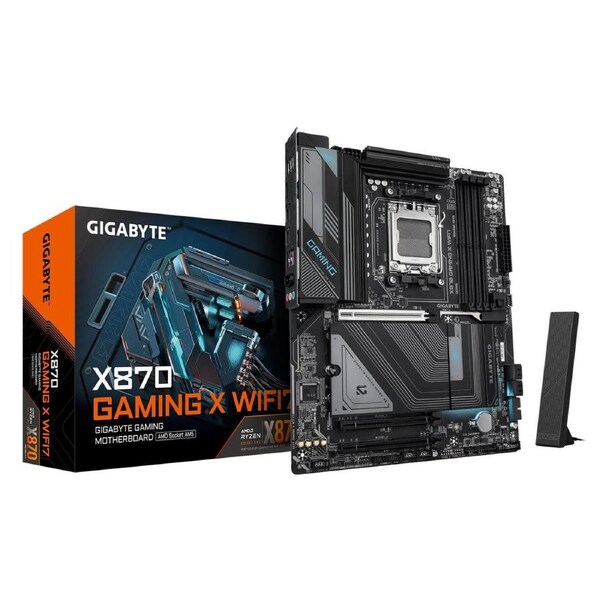

GIGABYTE X870 GAMING X WIFI7 Gaming Motherboard
Model: GA-X870-GAMING-X-WIFI7
Key Features:
- AMD Socket AM5: Supports AMD Ryzen(TM) 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO(TM)Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
-Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Specifications:
- Audio: Realtek(R) Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
- Chipset: AMD X870
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- I/O Connectors: 1 x Q-Flash Plus button, 2 x antenna connectors (2T2R), 1 x HDMI port(Note), 2 x USB4(R) USB Type-C(R) ports (DisplayPort*), 1 x USB 3.2 Gen 2 Type-A port (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
- Integrated CPU Graphics: Integrated Graphics Processor with AMD Radeon(TM) Graphics support+ASMedia USB4(R) Controller: - 2 x USB4(R) USB Type-C(R) ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Integrated Graphics Processor with AMD Radeon(TM) Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- LAN: Realtek(R) 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- PCI Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen(TM) 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen(TM) 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen(TM) 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
- Processor Support: AMD Socket AM5, support for: AMD Ryzen(TM) 9000 Series Processors/ AMD Ryzen(TM) 8000 Series Processors/ AMD Ryzen(TM) 7000 Series Processors
- RAID: RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- RAM Type/Bus/Max: Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO(TM)) and Extreme Memory Profile (XMP) memory modules
- Socket: AMD Socket AM5, support for: AMD Ryzen(TM) 9000 Series Processors/ AMD Ryzen(TM) 8000 Series Processors/ AMD Ryzen(TM) 7000 Series Processors
- Storage Interface: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen(TM) 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen(TM) 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen(TM) 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen(TM) 9000 Series Processors.
- Wireless & Bluetooth: MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
