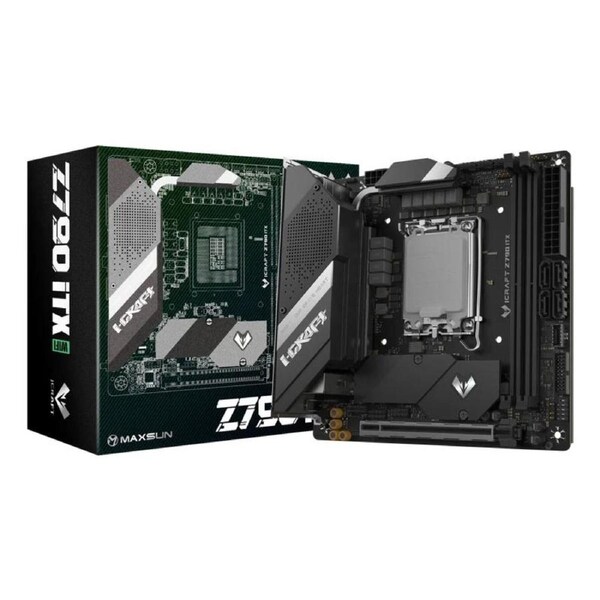

MAXSUN iCraft Z790ITX WIFI Gaming Motherboard
Model: MS-IC-Z790ITX-WIFI
Overview:
Intel Core 14th Gen CPU
- 9 Phases Power Supply
- 90A Dr.Mos
- RAA229131 PWM
- Hybrid cooling system
- DDR5 XMP 7400MHz+
- 2.5G LAN
- 2*20G Type-C
Specifications:
- Audio: Realtek(R) ALC897 Codec, 5.1-Channel High Definition Audio
- Chipset: INTEL Z790
- Form Factor: ITX 172mm x 172mm
- I/O Connectors: *Front USB (Total 6 ports): 1x USB 3.2 Gen2 Type C, 2x USB 3.2 Gen1 Type A, 3x USB 2.0; *Rear USB (Total 9 ports): 1x USB 3.2 Gen2x2 Type C, 4x USB 3.2 Gen1 Type A, 4x USB 2.0
- Integrated CPU Graphics: 1x DisplayPort 1.4, 1x HDMI(TM)port
- LAN: Realtek(R) RTL8125BG 2.5G LAN
- PCI Slots: 1x PCIe 5.0 x16 slot
- Processor Support: Supports 12th/13th Gen Intel(R) Core(TM) Processors, Pentium(R) Gold and Celeron(R) Processors
- RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- RAM Type/Bus/Max: 2x DDR5, Maximum Memory Capacity 96GB; Memory Support DDR5 7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Supports Intel(R) XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode
- Socket: LGA 1700
- Storage Interface: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports
- Warranty: Three-Year Limited Warranty
- Wireless & Bluetooth: Intel(R) Wi-Fi 6E AX211, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth(R) 5.3
