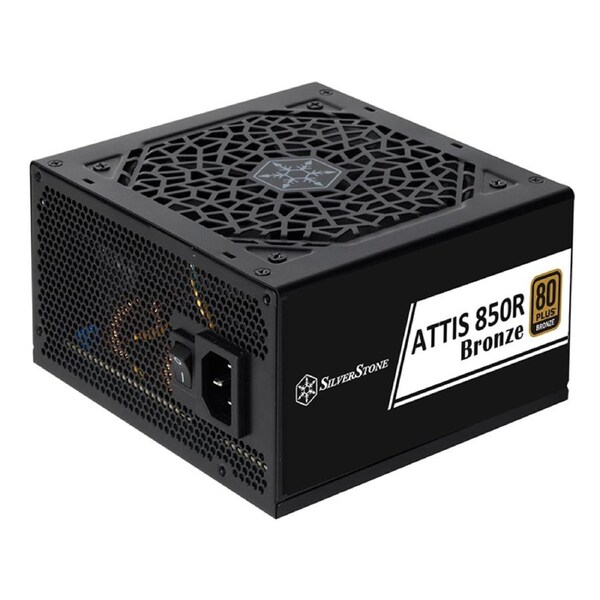

SilverStone 850W ATTIS 850R 80+ Bronze Power Supply (SST-AT850R-BF)
SPECIFICATIONS:
Model (safety certification) | SST-AX0850FCBR-39L | |||||
Color | Black (lead-free paint) | |||||
Load Range | Output Max.(Amps) Min.(Amps) Range (%) Line Reg.(%) Ripple(mVp-p) | +3.3V 20A 0A 5% 1% 50mV | +5V 20A 0A 5% 1% 50mV | +12V1 70.8A 0A 5% 1% 120mV | +5VSB 3A 0A 5% 1% 50mV | -12V 0.3A 0A 10% 1% 120mV |
Combined +3.3V & +5V | 100W | |||||
Combined +12V | 849.6W | |||||
Input Voltage | 90 ~ 264 Vrms | |||||
Input Frequency Range | 47Hz ~ 63Hz | |||||
PFC | Active PFC (PF>0.9 at full load) | |||||
Efficiency | 82% ~ 85% (at 20% ~ 100% loading) | |||||
MTBF | 100,000 hours | |||||
Operating temperature | 0C ~ 50C | |||||
Protection | Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection | |||||
Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 4-Pin + 4-Pin ATX 12V connector 4 x 8 / 6-Pin PCIe connector 1 x 12+4-Pin 12V-2x6 connector 6 x SATA connectors 3 x 4-Pin Peripheral connector | |||||
Cooling System | Silent 120mm fan | |||||
Noise Level | 18 dBA minimum | |||||
Form factor | ATX (PS2) | |||||
Dimension | 150mm (W) 86mm (H) 140mm (D) 5.91" (W) x 3.39" (H) x 5.5" (D) | |||||
Weight | 1.76 kg |
