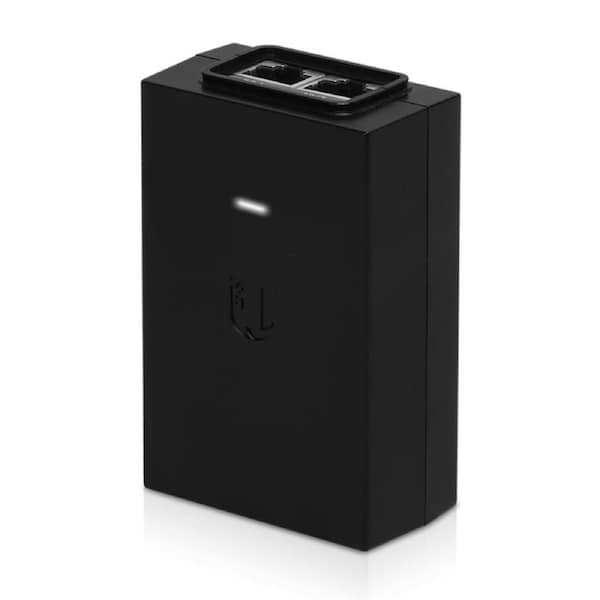

Ubiquiti 24V DC 30W POE Injector - Black (POE-24-30W)
SPECIFICATIONS:
Dimensions | 94 60 33 mm (3.70 2.36 1.30") |
Weight | 156 g (5.5 oz) |
Output voltage | 24VDC @ 1.25A |
LAN activity indicator | No |
Gigabit LAN port | Yes |
Remote reset capability | No |
Reset button | No |
Rated voltage | 100-240V AC @ 50/60Hz |
Input current | 0.6A @ 120VAC, 0.4A @ 240VAC |
Inrush current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
Efficiency | 83+% |
Output ripple | 1% Max. |
Switching frequency | 65 kHz |
Line regulation | 3% |
Load regulation | 5% |
4-pair powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (- |
Storage temperature | -30 to 70C (-22 to 158 F) |
Ambient operating temperature | 0 to 40 C (32 to 104 F) |
Ambient operating humidity | 35 to 95% noncondensing |
AC connector | IEC-320 C6 |
Data IN / PoE | RJ45 shielded socket |
Surge protection | Difference and common mode |
Clamping protection | 11V data, 60V power |
Max. surge discharge | 1500A (8/20 μs) power |
Peak pulse current | 36A (10/1000 μs) data |
Shunt capacitance | <5 pF data |
Response time | <1 ns |
Certifications | CE, FCC, IC, UL |
